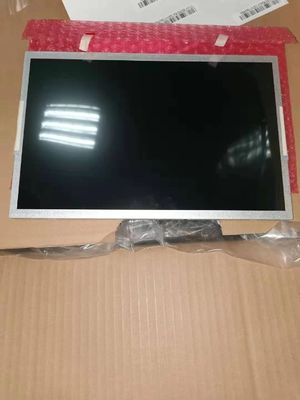

12.1 Inch Industrial Lcd Display 1280x800 124PPI TIANMA TM121JDSG10

TIANMA TM121JDSG10 12.1inch Industrial Lcd Display 1280(RGB)×800 [WXGA] 124PPI 3.3V 30P WLED 450 cd/m² 16.7M color

TM121JDSG10 is a 12.1" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. (hereafter called TIANMA), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by Einklcd in the following: Wide Temperature, WLED Backlight, Life ≥ 50K hours, With LED Driver, Matte . Based on its features, einklcd recommend that this model be applied to Industrial etc.Built-in RM91M39, RM76M59 driver IC. According to the information stored in einklcd this model mass production on Q2, 2016, Now this model is in production.  We inputted this model's specification on May 8 2017 for the first time, and the latest update on May 29 2020. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with TIANMA or it's agent to learn lateast production and specification detail of TM121JDSG10. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

• BrandTIANMA
• ModelTM121JDSG10

• Diagonal Size12.1 inch
• Typea-Si TFT-LCD, LCM

• Pixel Format1280(RGB)×800 [WXGA] 124PPI
• ConfigurationRGB Vertical Stripe

• Active Area261.12(H)×163.2(V) mm
• Outline Dim.278(H)×184(V) ×10.4(D) mm

• Bezel Area262.12(H)×164.2(V) mm
• TreatmentAntiglare

• Luminance450 cd/m² (Typ.)
• Contrast Ratio1000:1 (Typ.) (TM)

• View DirectionSymmetry
• Response Time12/13 (Typ.)(Tr/Td)

• Viewing Angle85/85/85/85 (Typ.)(CR≥10)
• Operating ModeSFT, Normally Black, Transmissive

• Support Color16.7M 40% NTSC
• Light SourceWLED , 50K hours , With LED Driver

• Weight440g (Typ.)
• Designed For

• Frame Rate60Hz
• Touch PanelWithout

• Interface Type
• LVDS (1 ch, 8-bit) , 30 pins Connector

• Power Supply
• 3.3V (Typ.)

• Environment
• Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
