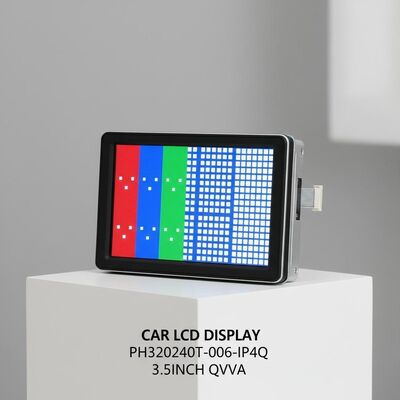

Powertip 3.5inch 30Pin FPC 320(RGB)×240pixels, QVGA, 115PPI 190cd/m26S1P WLED Without Driver RGB Vertical Stripe

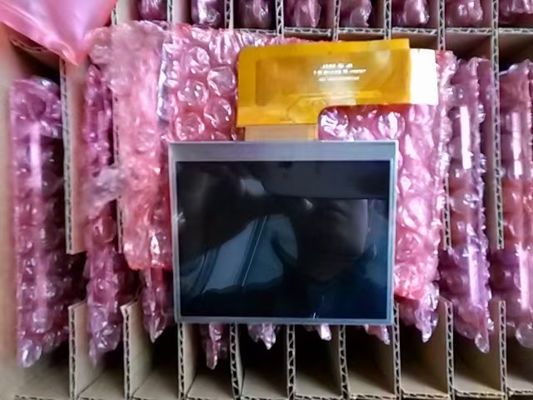

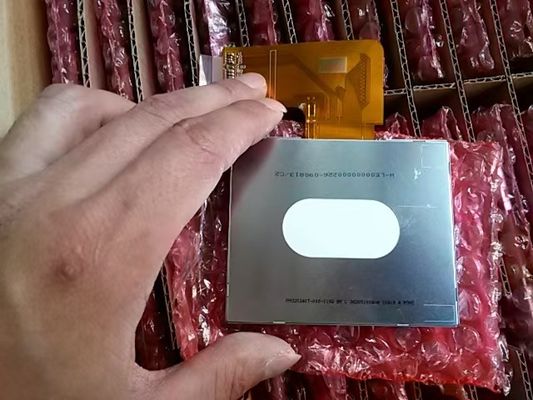

The PH320240T-006-IP4Q is a 3.5 inch diagonal a-Si TFT-LCD display panel product from Powertip Technology Corporation (hereafter called Powertip), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: WLED Backlight , CCIR656. Based on its features, Einklcd recommend that this model be applied to Video Door Phone etc. According to the information stored in einklcd this model mass production on Q4, 2007, Now this model is discontinued.  We inputted this model's specification on Sep 26 2012 for the first time, and the latest update on Sep 19 2019. If you want to embed PH320240T-006-IP4Q LCM in your future product, einklcd strongly recommend that you should contact with Powertip or it's agent to learn lateast production and specification detail. The PH320240T-006-IP4Q production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Panel Brand

Powertip

Panel Model

PH320240T-006-IP4Q

Panel Size

3.5"

Panel Type

a-Si TFT-LCD, LCM

Resolution

320(RGB)×240, QVGA, 115PPI

Pixel Format

RGB Vertical Stripe

Display Area

70.08(W)×52.56(H) mm

Bezel Opening

72.88(W)×55.36(H) mm

Outline Size

76.9(W)×63.9(H) mm

Surface

-

Brightness

190 cd/m² (Typ.)

Contrast Ratio

-

Viewing Angle

50/50/45/50 (Typ.)(CR≥10)

Display Mode

TN, Normally White, Transmissive

Best View on

6 o'clock

Response Time

35

Display Colors

65K

Lamp Type

6S1P WLED , Without Driver

Frequency

60Hz

Touch Screen

Without

Panel Weight

-

Application

Signal Interface

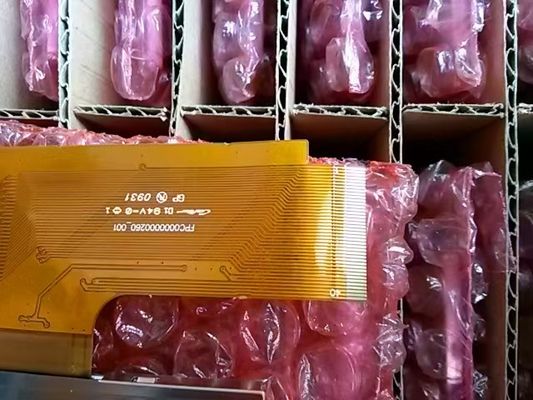

YUV (8-bit) , 30 pins FPC

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
