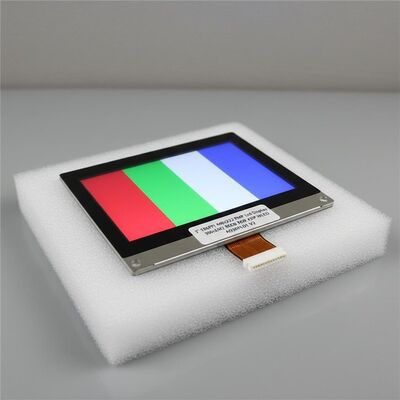

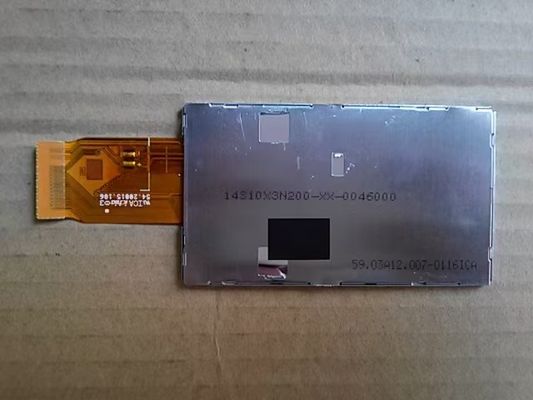

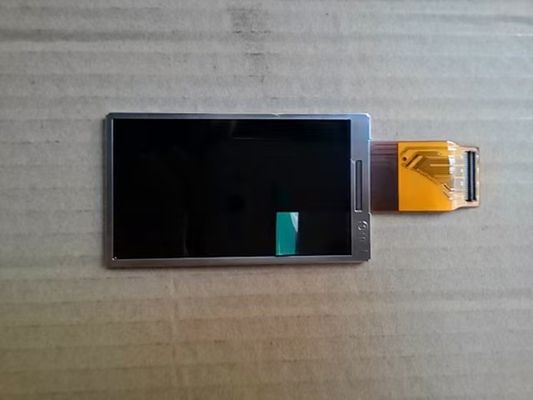

AUO 3.0inch AUO 70 Pin 3" 480(RGB)×272pixels, 186PPI 300cd/m2 RGB 4S1P WLED A030FL01 V2 for MP3 PMP lcd display

A030FL01 V2 (Alias: A030FL01 V.2) is a 3.0" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without touch screen. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -25 ~ 80°C . It's general features are summarized by einklcd in the following: Transflective, WLED Backlight, U/D,L/R Reverse , FPC length 34mm. Based on its features, einklcd recommend that this model be applied to MP3 PMP etc. According to the information stored in einklcd this model mass production on Q3, 2008, Now this model is discontinued.  We inputted this model's specification on Oct 12 2012 for the first time, and the latest update on May 8 2020. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of A030FL01 V2. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Panel Brand

AUO

Panel Model

A030FL01 V2

Panel Size

3.0"

Panel Type

a-Si TFT-LCD, LCM

Resolution

480(RGB)×272, WQVGA, 186PPI

Pixel Format

RGB Vertical Stripe

Display Area

65.52(W)×37.128(H) mm

Bezel Opening

68.12(W)×39.73(H) mm

Outline Size

76.12(W)×43.7(H) mm

Surface

-

Brightness

300 cd/m² (Typ.)

Contrast Ratio

500:1 (Typ.) (TM)

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Display Mode

ATR-MVA, Normally Black, Transflective

Best View on

Symmetry

Response Time

15/10 (Typ.)(Tr/Td)

Display Colors

16.7M 61% NTSC

Lamp Type

4S1P WLED

Frequency

60Hz

Touch Screen

Without

Panel Weight

22.2g (Typ.)

Application

Signal Interface

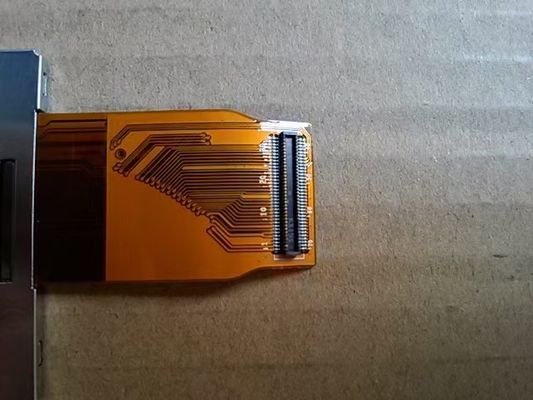

Parallel RGB (1 ch, 8-bit) + SPI , 70 pins Connector

Input Voltage

3.3/3.3V (Typ.)(VDD/VDDIO)

Environment

Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 80 °C
