Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Material: | Glass Oled | Color: | 262K Colors |
| Model: | WVGA | Style: | Wide Screen High Resolution 800*480Pixels |
| Brightness: | 300cd | Connector: | 60 |
| Contrast Ratio: | 400:1 | Working Time: | 10k Hours |
| High Light: | 76PPI Car Lcd Display,500cd/m2 Car Lcd Display,480x234 Car Lcd Panel |
||
7inch AUO 30 Pin 8" 480*234pixels 76PPI 500cd/m2 Car Lcd Display C070FW02 V0 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) Contrast Ratio 300:1

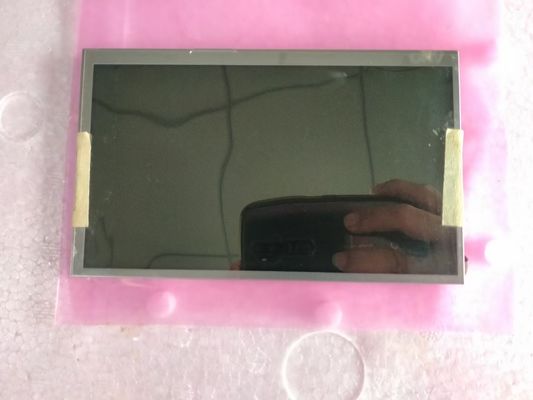

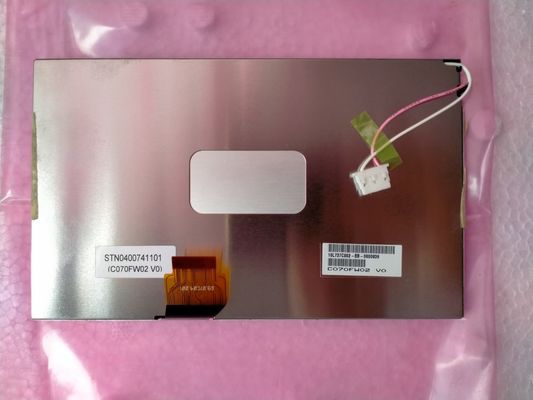

The C070FW02 V0 (Alias: C070FW02 V.0) is a 7.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 75°C , a storage temperature range of -40 ~ 85°C , and the maximal vibration level of 2.9G (28.4 m/s²). It's general features are summarized by Einklcd in the following: Wide Temperature, 3G Vibration, U/D,L/R Reverse, Matte . Based on its features, einklcd recommend that this model be applied to Automotive Display etc. According to the information stored in einklcd this model mass production on Q1, 2006, Now this model is discontinued. We inputted this model's specification on Nov 16 2011 for the first time, and the latest update on Apr 17 2020. If you want to embed C070FW02 V0 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The C070FW02 V0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
| Brand |
|---|
| Diagonal Size |
| Pixel Format |
| Active Area |
| Bezel Area |
| Luminance |
| View Direction |
| Viewing Angle |
| Support Color |
| Weight |
| Frame Rate |
| AUO |
| 7.0 inch |
| 480(RGB)×234 76PPI |
| 154.08(H)×86.58(V) mm |
| 156.4(H)×89.0(V) mm |
| 500 cd/m² (Typ.) |
| 12 o'clock |
| 60/60/60/40 (Typ.)(CR≥10) |
| Full color |
| 160±10g |
| - |
| Model |
| Type |
| Configuration |
| Outline Dim. |
| Treatment |
| Contrast Ratio |
| Response Time |
| Operating Mode |
| Light Source |
| Designed For |
| Touch Panel |
| C070FW02 V0 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 164.9(H)×100(V) ×6(D) mm |
| Antiglare (Haze 25%) |
| 300:1 (Typ.) (TM) |
| 12/18 (Typ.)(Tr/Td) |
| TN, Normally White, Transmissive |
| CCFL [1 pcs] , 10K hours , W/O Driver |
|
|
| Without |
| Interface Type | TFT Specific Analog RGB 30 pins FPC |
|---|---|
| Power Supply | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 75 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
|
|
|
