BOE 14Inch Stretched LCD Monitor with 3840*1110 Pixels 300cd/m2 Brightness and 30 Pin Connector

BOE 14Inch Stretched LCD Monitor with 3840*1110 Pixels 300cd/m2 Brightness and 30 Pin Connector

BOE 14Inch Stretched LCD Monitor with 3840*1110 Pixels 300cd/m2 Brightness and 30 Pin Connector

Brand Name: BOE
Model Number: NV140XTM-N52 (BOE085F)
MOQ: 1pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
Taiwan
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.7m Colors
Model:
WLED
Style:
Wide Screen High Resolution 3840*1110
Brightness:
300cd
Connector:
30pin
Contrast Ratio:
1500:1
Working Life:
15K Hours
Packaging Details:
Industrial packing
Highlight:

14Inch Stretched Lcd Monitor

,

3840*1110 Stretched Lcd Monitor

,

300cd/m2 Stretched Lcd Monitor

Product Description
BOE 14-Inch Stretched LCD Monitor - NV140XTM-N52 (BOE085F)
This 14.0-inch diagonal stretched bar LCD display from BOE Technology features a unique 3840*1100 pixel resolution with 283 PPI density. Designed for specialized applications, this a-Si TFT-LCD panel offers high brightness, excellent contrast, and wide viewing angles.
Key Features
  • Ultra-wide 3840*1100 resolution bar display format
  • High brightness: 300 cd/m² typical
  • Superior 1200:1 contrast ratio
  • WLED backlight with 15,000-hour lifespan
  • eDP 1.3 interface with 30-pin connector
  • 72% NTSC color gamut with 16.7 million colors
  • Slim profile design (≤3.2mm thickness)
Technical Specifications
Manufacturer BOE Technology Group Co., Ltd.
Model Number NV140XTM-N52 (BOE085F)
Screen Size 14.0 inch diagonal
Resolution 3840(RGB)*1100 pixels, 283 PPI
Active Area 344.218 * 98.604 mm (H*V)
Outline Dimensions 350.52 * 118.65 * 2.5 mm (H*V*D)
Luminance 300 cd/m² (Typical)
Contrast Ratio 1200:1 (Typical)
Viewing Angle 85/85/85/85 (CR≥10)
Response Time 30 ms (Typical, Tr+Td)
Color Depth 16.7 million colors
Backlight System 10S6P WLED with LED Driver
Interface eDP 1.3 (2 Lanes), 30-pin connector
Operating Voltage 3.3V (Typical)
Operating Temperature 0°C to 60°C
Storage Temperature -20°C to 65°C
Refresh Rate 60Hz
Application Areas
This stretched bar LCD monitor is ideal for laptop displays, specialized industrial applications, digital signage, and any application requiring an ultra-wide format display. The panel features ADS technology with normally black mode for optimal performance in various lighting conditions.

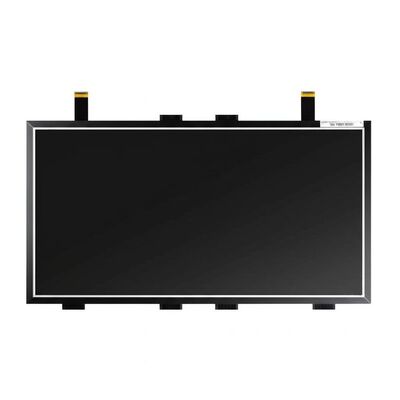

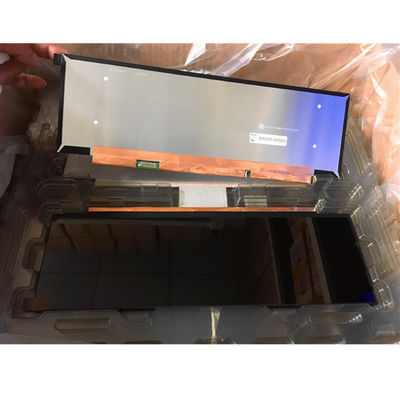

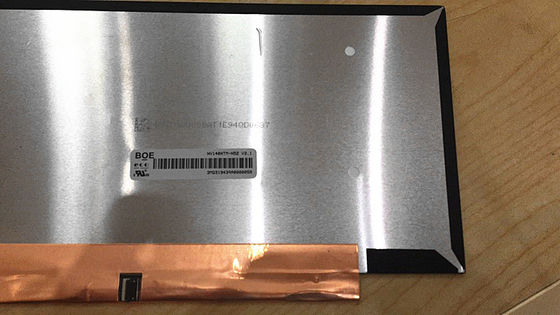

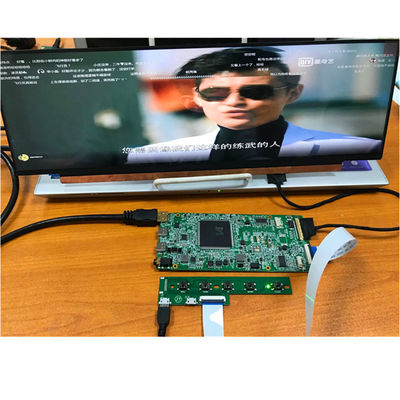

Product Images
BOE 14Inch Stretched LCD Monitor with 3840*1110 Pixels 300cd/m2 Brightness and 30 Pin Connector 0 BOE 14Inch Stretched LCD Monitor with 3840*1110 Pixels 300cd/m2 Brightness and 30 Pin Connector 1 BOE 14Inch Stretched LCD Monitor with 3840*1110 Pixels 300cd/m2 Brightness and 30 Pin Connector 2 BOE 14Inch Stretched LCD Monitor with 3840*1110 Pixels 300cd/m2 Brightness and 30 Pin Connector 3
Production Note: This model entered mass production in Q3 2019 and is currently in active production. For the most current specifications and production status, we recommend contacting BOE or their authorized agents directly.
