AUO 10.4inch Industrial LCD Display G104SN03 V1 with 800×600 Pixels 230cd/m² Brightness and 20PIN LVDS Interface

Name: AUO 10.4inch Industrial LCD Display G104SN03 V1 with 800×600 Pixels 230cd/m² Brightness and 20PIN LVDS Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G104SN03 V1
Price: 43.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G104SN03 V1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.07B Colors

Model:

WLED

Style:

Wide Screen High Resolution 800*600 PIXELS

Brightness:

230cd

Connector:

20PIN

Contrast Ratio:

500:1

Working Time:

30k Hours

Input Voltage:

3.3 V

Signal Type:

LVDS

Packaging Details:

Industrial packing

Highlight:

230cd/M2 Industrial LCD Displa

AUO 10.4in Industrial LCD Displa

G104SN03 V1

Product Description

800*600 96PPI 230cd/m² AUO 10.4in Industrial LCD Display G104SN03 V1

AUO 10.4-inch LCD display G104SN03 V1 featuring 800(RGB)*600 [SVGA] resolution, 96PPI pixel density, and 230 cd/m² brightness. This industrial LCD display panel is designed for demanding applications requiring reliable performance.

Technical Specifications

Brand	AUO
Model	G104SN03 V1
Diagonal Size	10.4 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	800(RGB)*600 [SVGA] 96PPI
Configuration	RGB Vertical Stripe
Active Area	211.2(H)*158.4(V) mm
Outline Dimensions	236(H)174.3(V)6(D) mm
Bezel Area	214.8(H)*162.0(V) mm
Surface Treatment	Antiglare, Hard coating (3H)
Luminance	230 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	10/20 (Typ.)(Tr/Td)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.2M 45% NTSC
Light Source	CCFL [1 pcs], 30K hours, W/O Driver
Weight	300g (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
Power Supply	3.3V (Typ.)
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 80 °C

Product Images

Display configuration and interface diagram

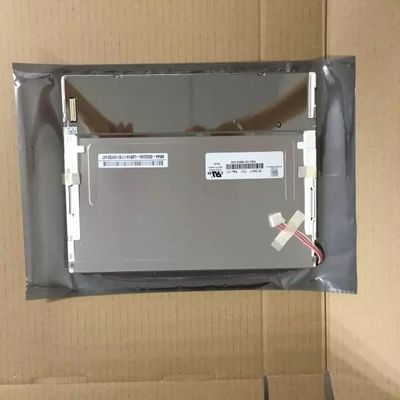

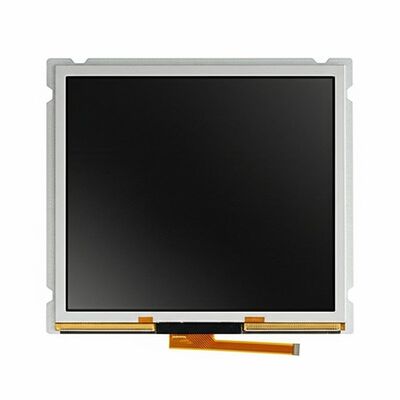

Front view of the industrial LCD panel

Side view showing display thickness and connectors
