Samsun 34 Inch 3440×1440 500cd/m² LCD Touch Display LTM340YP02-Q01

Name: Samsun 34 Inch 3440×1440 500cd/m² LCD Touch Display LTM340YP02-Q01
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LTM340YP02-Q01
Price: 30.00 USD
Availability: InStock

Brand Name:	samsung
Model Number:	LTM340YP02-Q01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.07B Colors

Model:

WLED

Style:

Wide Screen High Resolution 3440*1440PIXELS

Brightness:

500cd

Connector:

50PIN

Contrast Ratio:

3000:1

Working Time:

30k Hours

Input Voltage:

12V

Signal Type:

EPD

Packaging Details:

Industrial packing

Highlight:

500cd/M2 Lcd Touch Display

3440×1440 Lcd Touch Display

LTM340YP02-Q01

Product Description

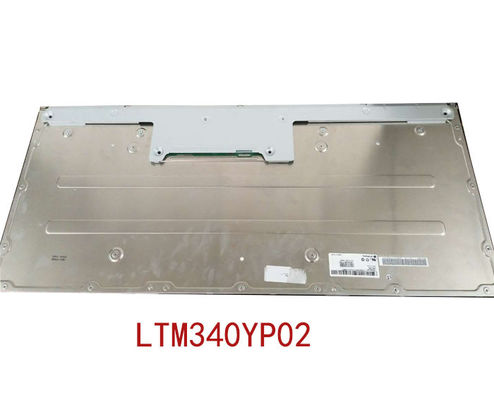

Samsung 34" 3440×1440 500cd/m² LCD Touch Display LTM340YP02-Q01

Samsung 34-inch LCD model LTM340YP02-Q01 featuring 3440(RGB)×1440 resolution, 109 PPI, 500 cd/m² brightness, and 50-pin eDP interface.

Technical Specifications

Manufacturer	SAMSUNG
Model Name	LTM340YP02-Q01
Screen Size	34 inch
Screen Type	LCM, a-Si TFT-LCD
Resolution	3440(RGB)×1440, 109 PPI
Active Area	799.8 × 334.8 mm (H×V)
Outline Dimensions	811.5 × 357 × 18.1 mm (H×V×D)
Luminance	300 cd/m² (Typical)
Contrast Ratio	3000:1 (Typical)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Response Time	14 ms (Typical, G to G)
Color Depth	16.7M colors, 99% sRGB
Backlight	4 strings WLED, 30K hours, No Driver
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	eDP (4 Lanes), 50-pin Connector
Voltage Supply	12.0V (Typical)
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C
Weight	5.94 kg (Maximum)

Key Features

34-inch curved display with 2000R curvature
High-resolution 3440×1440 ultra-wide format
Professional color accuracy with 99% sRGB coverage
PVA technology with normally black operation
WLED backlight system with 30,000-hour lifespan
Anti-glare treatment with hard coating (2H)

Product Information

The LTM340YP02-Q01 is a 34-inch diagonal a-Si TFT-LCD display panel from Samsung Display Co., Ltd., featuring an integrated WLED backlight system. This model is designed for applications such as desktop monitors and features sRGB color space, curved display, and matte finish.

Note: This model entered mass production in Q4 2015 and is currently discontinued. Specifications were last updated on January 18, 2020. For current production status and detailed specifications, please contact Samsung or their authorized agents directly.
