| Brand Name: | cpt |
| Model Number: | CLAA150XQ01CW |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

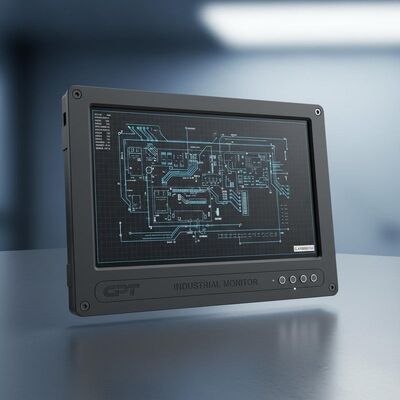

CPT 15inch CLAA150XQ01CW 1024(RGB)×768, XGA, 85PPI 450 cd/m² LVDS industrial lcd monitor 20pin 70khours working life
| Panel Brand |
|---|
| Panel Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Weight |
| CPT |
| 15.0" |
| 1024(RGB)×768, XGA, 85PPI |
| 304.128(W)×228.096(H) mm |
| 326.5(W)×253.5(H) ×11.5(D) mm |
| 450 cd/m² (Typ.) |
| 80/80/70/70 (Typ.)(CR≥10) |
| 6 o'clock |
| 16.7M 63% NTSC |
| 60Hz |
| 870g (Typ.) |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| CLAA150XQ01CW |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 307.4(W)×231.3(H) mm |
| Hard coating (3H) |
| 700:1 (Typ.) (TM) |
| TN, Normally White, Transmissive |
| 10/15 (Typ.)(Tr/Td) |
| 8S2P WLED , 70K hours , With LED Driver |
| Without |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
|---|---|
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |

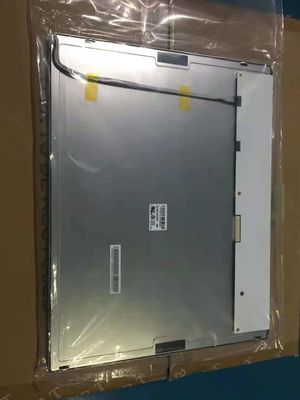

The CLAA150XQ01CW is a 15.0 inch diagonal a-Si TFT-LCD display panel product from Chunghwa Picture Tubes, LTD. (hereafter called CPT), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Einklcd in the following: Wide Temperature, WLED Backlight, Life ≥ 70K hours, With LED Driver . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in Einklcd this model mass production on Q2, 2015, Now this model is discontinued. We inputted this model's specification on Dec 22 2015 for the first time, and the latest update on Jul 25 2017. If you want to embed CLAA150XQ01CW LCM in your future product, einklcd strongly recommend that you should contact with CPT or it's agent to learn lateast production and specification detail. The CLAA150XQ01CW production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
