AUO 12" 800×600 82PPI 450cd/m2 Industrial Lcd Panel

AUO 12.1inch industrial lcd panel 800(RGB)×600 (SVGA) 82PPI 450cd/m2 700:1 contrast ratio 20Pin 262k colors

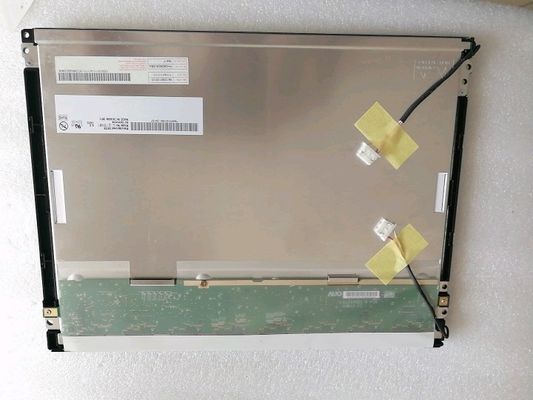

The G121SN01 V4 (Alias: G121SN01 V.4, 97.12G01.401) is a 12.1 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, 180° Reverse, 6/8 bit, Matte , Mass production from May 2009; 6.7W. Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in Einklcd this model mass production on Q2, 2009, Now this model is in production. We inputted this model's specification on Jun 1 2012 for the first time, and the latest update on Aug 6 2019. If you want to embed G121SN01 V4 LCM in your future product, Einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The G121SN01 V4 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Manufacturer

AUO

Model Name

G121SN01 V4

Screen Size

12.1 inch

Screen Type

LCM , a-Si TFT-LCD

Pixel Number

800(RGB)×600 (SVGA) 82PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

246 × 184.5 (H×V)

Outline(mm)

279 × 209 (H×V×D)

Bezel Area(mm)

249.05 × 188.3 (H×V)

Treatment

Antiglare, Hard coating (3H)

Luminance

450 cd/m² (Typ.)

Contrast Ratio

700 : 1 (Typ.) (TM)

Viewing Angle

80/80/65/75 (Typ.)(CR≥10)

Response

25/10 (Typ.)(Tr/Td) ms

Good View at

6 o'clock

Work Mode

TN, Normally White, Transmissive

Color Depth

262K/16.2M 55% NTSC

Backlight

9S2P WLED , 50K hours , With LED Driver

Mass

580g (Max.)

Used for

Refresh Rate

60Hz

Touchscreen

Without

Signal Type

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C
