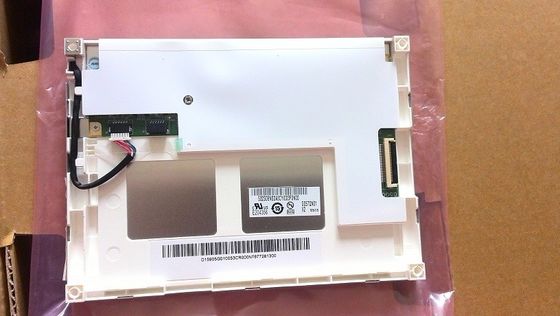

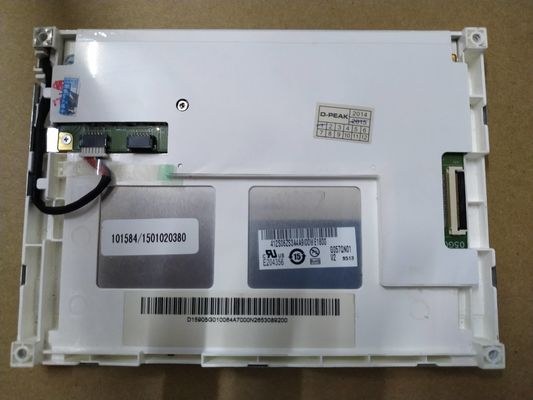

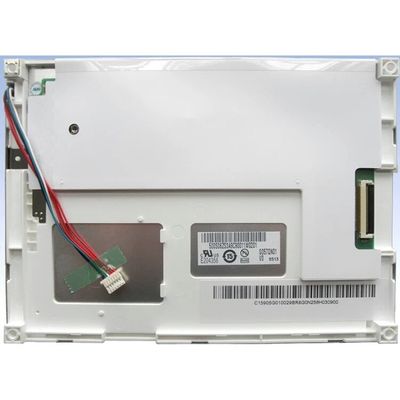

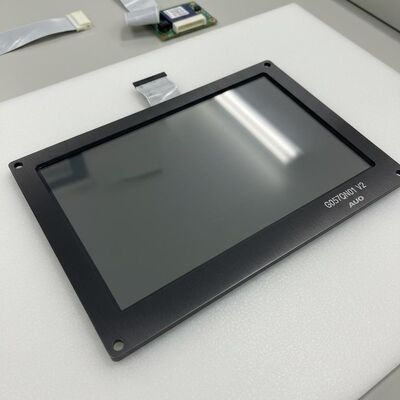

320×240 800cd/m2 AUO 5.7 Inch Industrial Lcd Panel G057QN01 V2

AUO 5.7inch industrial lcd panel 320(RGB)×240 [QVGA] 800cd/m2 800:1 contrast ratio 33Pin 16.7m colors

The G057QN01 V2 (Alias: G057QN01 V.2) is a 5.7 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: Wide Temperature, Hight Brightness, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, U/D,L/R Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Industrial, Outdoor High Brightness etc. According to the information stored in Einklcd this model mass production on Q4, 2011, Now this model is in production. We inputted this model's specification on Apr 3 2013 for the first time, and the latest update on Oct 8 2019. If you want to embed G057QN01 V2 LCM in your future product, Einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The G057QN01 V2 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Panel Brand

AUO

Panel Model

G057QN01 V2

Panel Size

5.7"

Panel Type

a-Si TFT-LCD, LCM

Resolution

320(RGB)×240, QVGA, 70PPI

Pixel Format

RGB Vertical Stripe

Display Area

115.2(W)×86.4(H) mm

Bezel Opening

118.2(W)×89.4(H) mm

Outline Size

144(W)×104.6(H) ×12.8(D) mm

Surface

Antiglare, Hard coating (3H)

Brightness

800 cd/m² (Typ.)

Contrast Ratio

800:1 (Typ.) (TM)

Viewing Angle

80/80/70/70 (Typ.)(CR≥10)

Display Mode

TN, Normally White, Transmissive

Best View on

12 o'clock

Response Time

15/10 (Typ.)(Tr/Td)

Display Colors

262K 50% NTSC

Lamp Type

WLED , 50K hours , With LED Driver

Frequency

60Hz

Touch Screen

Without

Panel Weight

150/165g (Typ./Max.)

Application

Signal Interface

CMOS (1 ch, 6-bit) , 33 pins Connector

Input Voltage

3.3V (Typ.)

Environment

Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
