4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02

Customer Reviews
We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02

4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02
4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02 4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02 4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02 4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02 4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02

Large Image :  4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02

Product Details:
Place of Origin: China
Brand Name: SHARP
Certification: Rohs,CE,FCC
Model Number: LQ043T3DX02
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation

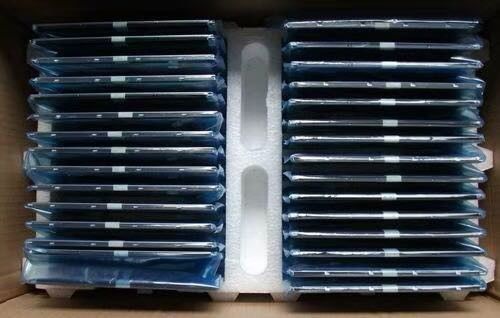

Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02

Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7Mcolors
Model: WLED Style: Wide Screen High Resolution 480*272
Brightness: 165cd Connector: 40
Contrast Ratio: 400:1 Working Time: 30k Hours
High Light:

165cd/m² Industrial Lcd Panel

,

480*272 Industrial Lcd Panel

,

LQ043T3DX02

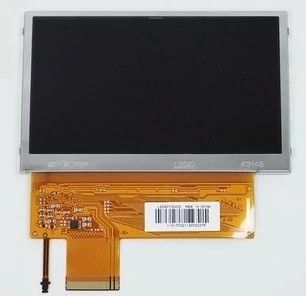

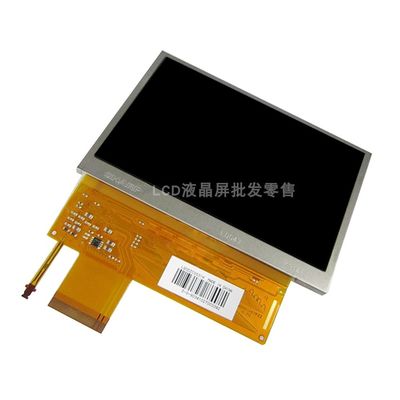

Sharp 4.3inch industrial lcd panel display LQ043T3DX02 480*272Pixels 165 cd/m² (Typ.) 40pin







Panel Brand
Sharp
Panel Model
LQ043T3DX02 Panel Size
4.3"
Panel Type
a-Si TFT-LCD, LCM
Resolution
480(RGB)×272, WQVGA, 128PPI
Pixel Format
RGB Vertical Stripe
Display Area
95.04(W)×53.856(H) mm
Bezel Opening
98.7(W)×57.5(H) mm
Outline Size
105.5(W)×67.2(H) mm
Surface
Clear, Hard coating
Brightness
165 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (TM)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Display Mode
ASV, Normally Black, Transmissive
Best View on
Symmetry
Response Time
30/30 (Typ.)(Tr/Td)
Display Colors
16.7M
Lamp Type
7S1P WLED , Without Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
50.0g (Typ.)
Application
4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02 0 4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02 1
Signal Interface

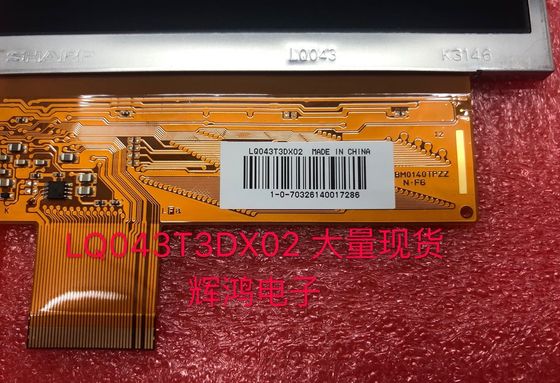

Parallel RGB (1 ch, 8-bit) , 40 pins FPC
Input Voltage
2.5/5.0V (Typ.)(VCC/AVDD)
Environment
Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C

4.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02 24.3" 480*272 165cd/M² 40 Pin Industrial Lcd Panel LQ043T3DX02 3
