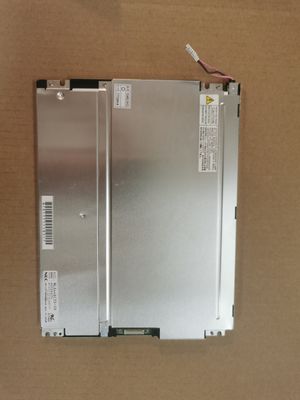

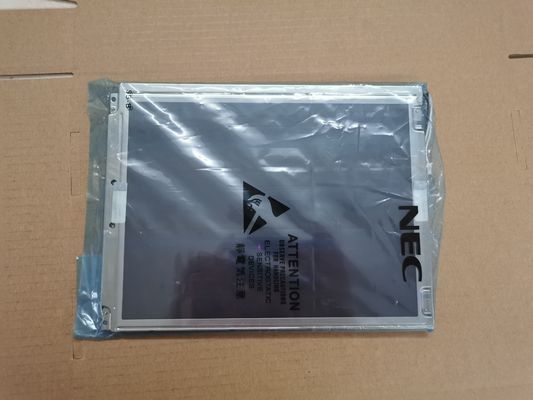

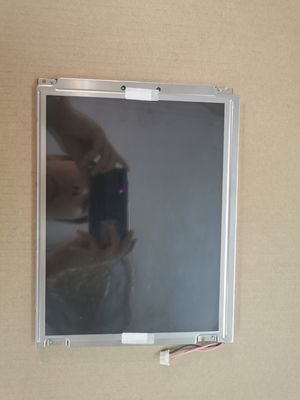

10.4" 640×480 VGA 76PPI 450cd/m² Industrial LCD Display NL6448BC33-59

NEC 10.4inch industrial lcd panel NL6448BC33-59 640(RGB)×480 VGA pixels 76PPI 31pin 450 cd/m²

•
• Panel Brand
  NEC
• Panel Model

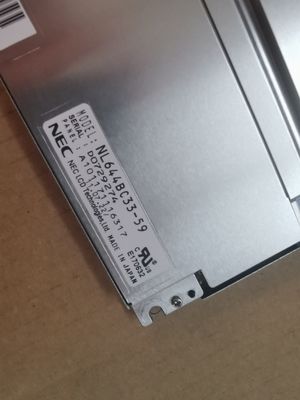

  NL6448BC33-59 1 Compatible

• Panel Size
  10.4"
• Panel Type
  a-Si TFT-LCD, LCM

• Resolution
  640(RGB)×480, VGA, 76PPI
• Pixel Format
  RGB Vertical Stripe

• Display Area
  211.2(W)×158.4(H) mm
• Bezel Opening
  215.4(W)×161.8(H) mm

• Outline Size
  243(W)×185.1(H) ×11(D) mm
• Surface
  Clear, Hard coating (3H)

• Brightness
  450 cd/m² (Typ.)
• Contrast Ratio
  600:1 (Typ.) (TM)

• Viewing Angle
  70/70/45/55 (Typ.)(CR≥10)
• Display Mode
  TN, Normally White, Transmissive

• Best View on
  6 o'clock
• Response Time
  8/25 (Typ.)(Tr/Td)

• Display Colors
  262K 43% NTSC
• Lamp Type
  2 pcs CCFL , Without Driver

• Frequency
  60Hz
• Touch Screen
  Without

• Panel Weight
  475/500g (Typ./Max.)
• Application


•
•
• Signal Interface
• CMOS (1 ch, 6-bit) , 31 pins Connector

•
•
• Input Voltage
• 3.3/5.0V (Typ.)

•
•
• Environment
• Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
