11024x768 400cd/M² 15" Industrial Lcd Automotive Display

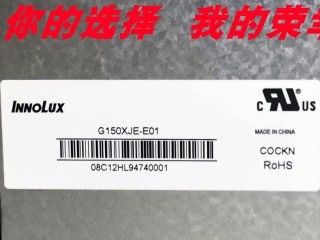

G150XJE-E01 innolux 15inch industrial lcd model Automotive display 1024*768pixels 400 cd/m² 30pin

Panel Brand

Innolux

Panel Model

G150XJE-E01

Panel Size

15.0"

Panel Type

a-Si TFT-LCD, LCM

Resolution

1024(RGB)×768, XGA, 85PPI

Pixel Format

RGB Vertical Stripe

Display Area

304.128(W)×228.096(H) mm

Bezel Opening

307.4(W)×231.3(H) mm

Outline Size

326.5(W)×253.5(H) ×9.6(D) mm

Surface

Antiglare, Hard coating (3H)

Brightness

400 cd/m² (Typ.)

Contrast Ratio

2500:1 (Typ.) (TM)

Viewing Angle

88/88/88/88 (Typ.)(CR≥10)

Display Mode

NPVA, Normally Black, Transmissive

Best View on

Symmetry

Response Time

16/7 (Typ.)(Tr/Td)

Display Colors

262K/16.7M 72% NTSC

Lamp Type

WLED , 70K hours , With LED Driver

Frequency

60Hz

Touch Screen

Without

Panel Weight

942/980g (Typ./Max.)

Application

Signal Interface

eDP (1 Lane) , 30 pins Connector

Input Voltage

3.3V (Typ.)

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C
