| Brand Name: | sharp |
| Model Number: | LQ150X1LG71 |
| MOQ: | 10pcs |
| Price: | 43 |
| Packaging Details: | industrial package |

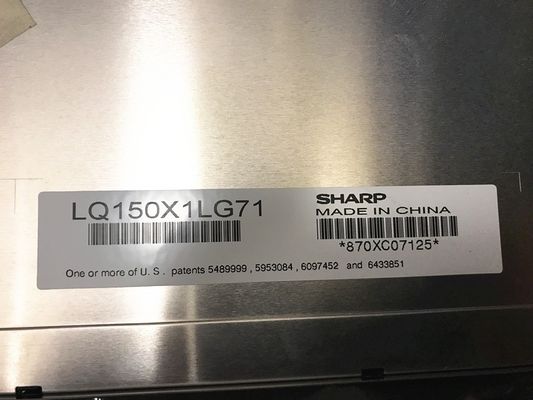

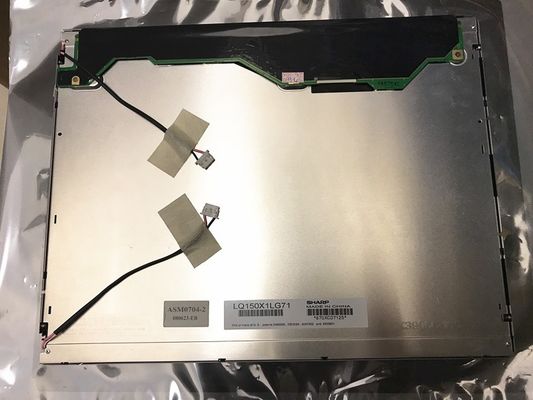

Sharp 15"inch industrial lcd LQ150X1LG71 1024*768pixels LVDS 20 Pin Connector 250 cd/m² Brand new 50k hour working hour
| Brand |
|---|
| Diagonal Size |
| Pixel Format |
| Active Area |
| Bezel Area |
| Luminance |
| View Direction |
| Viewing Angle |
| Support Color |
| Weight |
| Frame Rate |
| Sharp |
| 15.0 inch |
| 1024(RGB)×768 [XGA] 85PPI |
| 304.128(H)×228.096(V) mm |
| 308.1(H)×232.1(V) mm |
| 250 cd/m² (Typ.) |
| 6 o'clock |
| 60/60/45/55 (Typ.)(CR≥10) |
| 16.2M 52% NTSC |
| 1.00Kgs (Max.) |
| 60Hz |
| Model |
| Type |
| Configuration |
| Outline Dim. |
| Treatment |
| Contrast Ratio |
| Response Time |
| Operating Mode |
| Light Source |
| Designed For |
| Touch Panel |
| LQ150X1LG71 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 326(H)×252(V) ×11.7(D) mm |
| Antiglare (Haze 25%), Hard coating (3H) |
| 550:1 (Typ.) (TM) |
| 2/6 (Typ.)(Tr/Td) |
| TN, Normally White, Transmissive |

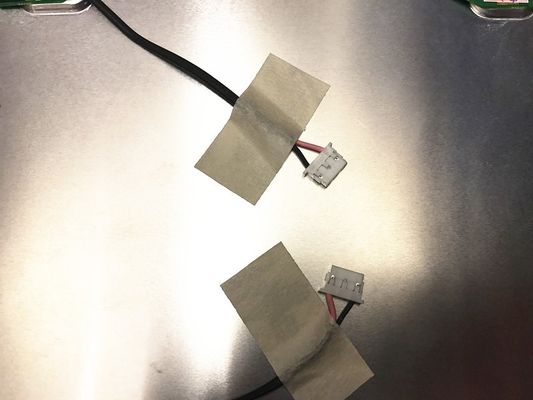

| CCFL [2 pcs] , 50K hours , W/O Driver |
|
|
| Without |
| Interface Type | LVDS (1 ch, 8-bit) 20 pins Connector |
|---|---|
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 60 °C |
The LQ150X1LG71 (Alias: FU-15-027) is a 15.0 inch diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -25 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Einklcd in the following: Life ≥ 50K hours, 180° Reverse, Matte , Compliant with the PSWG standard. Based on its features, Einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q1, 2007 and last shippment on Q1, 2013, Now this model is discontinued. We inputted this model's specification on Jun 12 2012 for the first time, and the latest update on Aug 2 2019. If you want to embed LQ150X1LG71 LCM in your future product, Einklcd strongly recommend that you should contact with Sharp or it's agent to learn lateast production and specification detail. The LQ150X1LG71 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
