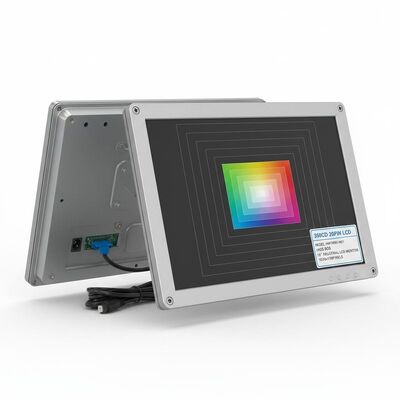

350CD 20 PIN LVDS BOE 15" Industrial Lcd Monitor 1024x768

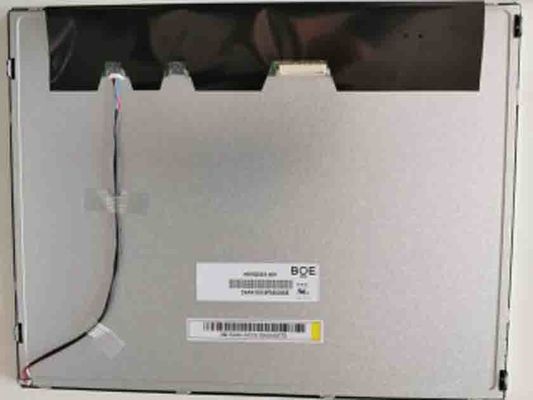

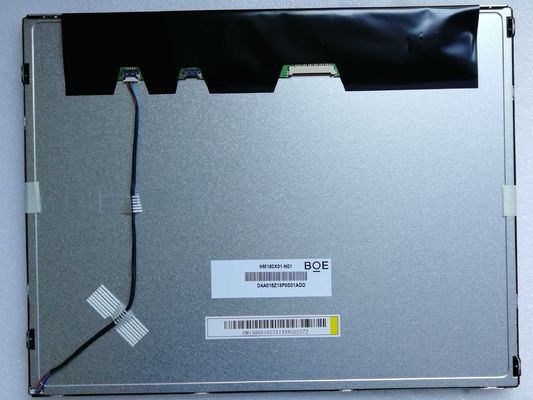

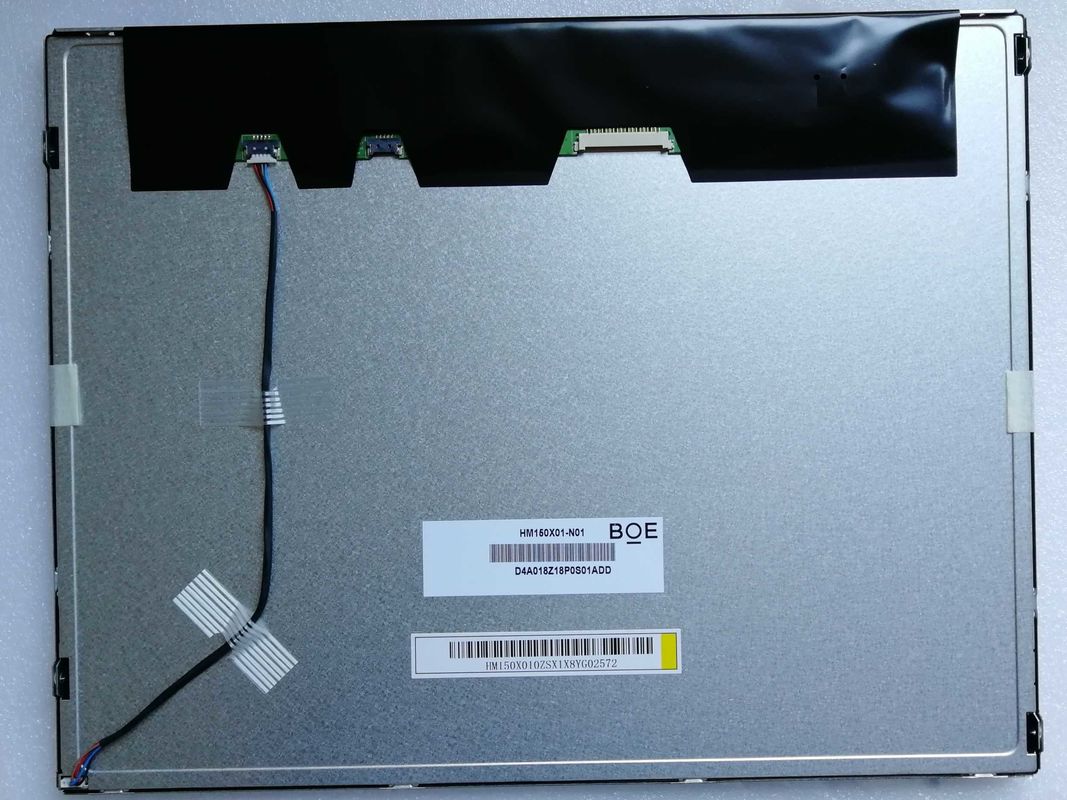

BOE 15inch model HM150X01-N01 Industrial LCD Display 1024 * 768 Pixels Resolution 350CD 20PIN LVDS

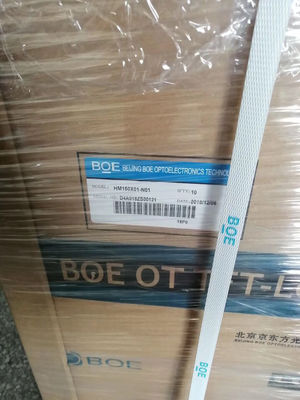

All products will be send to customer after inspection one by one.

Panel Brand

BOE

Panel Model

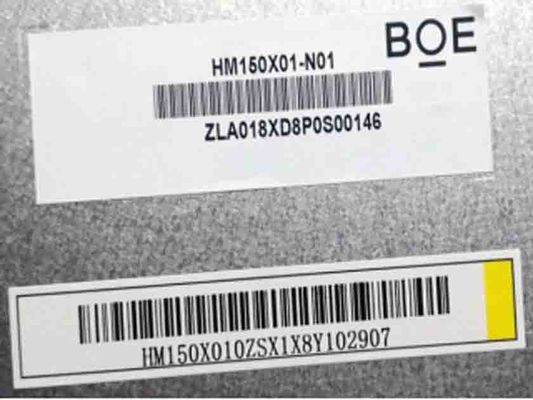

HM150X01-N01

Panel Size

15.0"

Panel Type

a-Si TFT-LCD, LCM

Resolution

1024(RGB)×768, XGA, 85PPI

Pixel Format

RGB Vertical Stripe

Display Area

304.128(W)×228.096(H) mm

Bezel Opening

-

Outline Size

326.5(W)×253.5(H) mm

Surface

Antiglare (Haze 25%), Hard coating (3H)

Brightness

350 cd/m² (Typ.)

Contrast Ratio

700:1 (Typ.) (TM)

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Display Mode

TN, Normally White, Transmissive

Best View on

-

Response Time

8 (Typ.)(Tr+Td)

Display Colors

262K/16.2M 60% NTSC

Lamp Type

WLED , 50K hours , With LED Driver

Frequency

60Hz

Touch Screen

Without

Panel Weight

850g (Typ.)

Application

Signal Interface

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Input Voltage

3.3V (Typ.)

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C



The HM150X01-N01 is a 15.0 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, 6/8 bit, Matte . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q3, 2017, Now this model is in production. We inputted this model's specification on Oct 24 2018 for the first time, and the latest update on May 26 2020. If you want to embed HM150X01-N01 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The HM150X01-N01 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
