LG 55 Inch LCD TV Panel with 1920*1080 Pixels 700 CD/M2 Brightness and 51PIN IPS Display Screen

Name: LG 55 Inch LCD TV Panel with 1920*1080 Pixels 700 CD/M2 Brightness and 51PIN IPS Display Screen
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LD550EUN-UHA3
Price: 30.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	LD550EUN-UHA3
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080

Style:

51PIN IPS

Brightness:

700 CD/M2

Color:

16.7m

Contrast Ratio:

1300 :1

Working Life:

60k Hours Without Driver

Packaging Details:

Industrial packing

Highlight:

700CD/M2 Lcd Tv Display Panel

1920*1080 Lcd Tv Monitor

Product Description

LD550EUN-UHA3 55" FHD LCD TV Panel

Product Overview

LG 55" TV Panel Display Screen LD550EUN-UHA3 featuring 700CD/m² brightness, 1920*1080 Full HD resolution, and LVDS interface connectivity.

Technical Specifications

Brand	LG Display
Model	LD550EUN-UHA3
Diagonal Size	55 inch
Display Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080 [FHD]
Pixel Configuration	RGB Vertical Stripe
Active Area	1209.6(H)*680.4(V) mm
Outline Dimensions	1227.4(H)698.2(V)32.2(D) mm
Bezel Area	1215.6(H)*686.4(V) mm
Surface Treatment	Antiglare (Haze 10%), Hard coating (3H)
Brightness	700 cd/m² (Typical)
Contrast Ratio	1300:1 (Typical)
Response Time	8ms (Typical, G to G)
Viewing Angle	89/89/89/89 (Minimum, CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Color Support	16.7M/1.07B colors, 72% NTSC
Light Source	WLED, 60K hours lifespan, With LED Driver
Spliced Seam	17.8 mm (active to active seam)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8/10-bit), 51 pins Connector
Power Supply	12.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Key Features

sRGB color gamut support
Landscape and Portrait orientation compatible
High brightness display (700 cd/m²)
WLED backlight with 60,000 hours lifespan
Integrated LED Driver
8/10-bit color depth support
Matte anti-glare surface treatment
5.9mm even bezel design

Application Recommendations

This LG Display panel is specifically designed for Digital Signage and Video Wall applications, offering excellent performance for commercial and industrial display solutions.

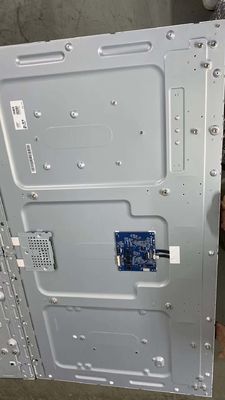

Product Image

Production Status Note: Mass production began in Q3 2017 and the model is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting LG Display or their authorized distributors directly.
