Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Material: | Glass Oled | Color: | 16.2m Colors |
| Model: | XGA | Style: | Wide Screen High Resolution 320*240Pixels |
| Brightness: | 140cd | Connector: | 14 |
| Contrast Ratio: | 25:1 | Working Time: | 10k Hours |
| High Light: | 140CD/M2 Industrial Lcd Panel,320x240 Industrial Touch Panel Pc |
||

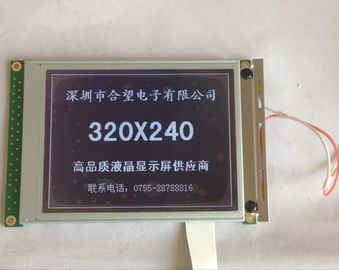

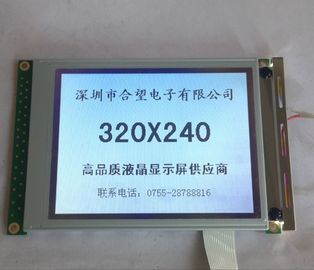

Hitachi 5.7inch Industrial LCD Display SP14Q002-A1 ,320*240 Pixels Panel 140CD/M2 14 Pin
| Brand | HITACHI | Model | SP14Q002-A1 |
|---|---|---|---|
| Diagonal Size | 5.7 inch | Type | FSTN-LCD , LCM |
| Pixel Format | 320×240 [QVGA] | Configuration | Rectangle |
| Active Area | 115.185(H)×86.385(V) mm | Outline Dim. | 167(H)×109(V) ×10(D) mm |
| Bezel Area | 122.0(H)×92.0(V) mm | Treatment | Antiglare |
| Luminance | 140 cd/m² (Typ.) | Contrast Ratio | 25:1 (Typ.) (TM) |
| View Direction | 6 o'clock | Response Time | 120/150 (Typ.)(Tr/Td) |
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) | Operating Mode | STN, Black/White (Negative), Transmissive |
| Support Color | Monochrome | Light Source | CCFL [1 pcs] , W/O Driver |
| Weight | - | Designed For | |
| Frame Rate | 75Hz | Touch Panel | Without |
| Interface Type | Parallel Data (4-bit) , 14 pins FPC | ||
| Power Supply | 3.3/5.0V (Typ.)(VDD) | ||
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||
All our sell products provided ONE year warranty! Free exchange !
All LCD products we sell was full test before delivery.
