HSD070IFW1-A00 Hannstar 7" 1024*600 600CD/M2 Car LCD Display

Brand Name: Hannstar
Model Number: HSD070IFW1-A00
MOQ: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Payment Terms: T/T,W, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.2m Colors
Model:
XGA
Style:
Wide Screen High Resolution 1024*600Pixels
Brightness:
600cd
Connector:
40
Contrast Ratio:
800:1
Working Time:
10k Hours
Supply Ability:
3000pcs per week
Highlight:

600CD/M Car Video Screen Monitor

,

HSD070IFW1-A00

Product Description

Hannstar 7 Inch Car LCD Display 1024*600Pixels Panel 600CD/M2 40 Pin HSD070IFW1-A00



Panel Brand
Panel Size
Resolution
Display Area
Outline Size
Brightness
Viewing Angle
Best View on
Display Colors
Frequency
Weight
HannStar
7.0"
1024(RGB)×600 , WSVGA
153.6(W)×86.64(H) mm
164.9(W)×100(H) mm
600 cd/m² (Typ.)
80/80/80/70 (Typ.)(CR≥10)
6 o'clock
262K/16.7M 50% NTSC
60Hz
146/156g (Typ./Max.)
Panel Model
Panel Type
Pixel Format
Bezel Opening
Surface
Contrast Ratio
Display Mode
Response Time
Lamp Type
Touch Screen
Application
HSD070IFW1-A00
a-Si TFT-LCD , LCM
RGB Vertical Stripe
156.0(W)×90.1(H) mm
Antiglare
800:1 (Typ.) (TM)
TN, Normally White, Transmissive
4/12 (Typ.)(Tr/Td)
WLED , 10K hours , Without Driver
Without
Signal Interface LVDS (1 ch, 6/8-bit) , 40 pins , FPC
Input Voltage 3.3/9.5/18/-10V (Typ.)(VDD/AVDD/VGH/VGL)
Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

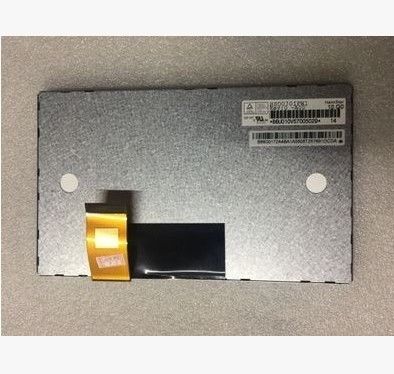

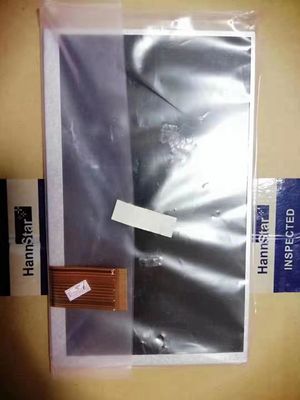

HSD070IFW1-A00 Hannstar 7" 1024*600 600CD/M2 Car LCD Display 0HSD070IFW1-A00 Hannstar 7" 1024*600 600CD/M2 Car LCD Display 1

HannStar Display Corporation (hereafter called HannStar) HSD070IFW1-A00 is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: Hight Brightness, WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, Einklcd recommend that this model be applied to Automotive Display etc. According to the information stored in Einklcd this model mass production on Q2, 2013, Now this model is in production.  We inputted this model's specification on Apr 9 2013 for the first time, and the latest update on Sep 10 2018. If you want to embed HSD070IFW1-A00 LCM in your future product, Einklcd strongly recommend that you should contact with HannStar or it's distributor to learn lateast production and specification detail. The HSD070IFW1-A00 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.


All LCD models we sales on line with ONE year quality warranty.

All  LCD models was full  test one by one before delivery.
