Hannstar 10.4 Inch Car LCD Display 1024*768 Pixels Panel 600CD/M2 60 Pin HSD104IXN1-A00

Customer Reviews
We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

Hannstar 10.4 Inch Car LCD Display 1024*768 Pixels Panel 600CD/M2 60 Pin HSD104IXN1-A00

Hannstar 10.4 Inch Car LCD Display 1024*768 Pixels Panel 600CD/M2 60 Pin HSD104IXN1-A00
Hannstar 10.4 Inch Car LCD Display 1024*768 Pixels Panel 600CD/M2 60 Pin HSD104IXN1-A00 Hannstar 10.4 Inch Car LCD Display 1024*768 Pixels Panel 600CD/M2 60 Pin HSD104IXN1-A00 Hannstar 10.4 Inch Car LCD Display 1024*768 Pixels Panel 600CD/M2 60 Pin HSD104IXN1-A00

Large Image :  Hannstar 10.4 Inch Car LCD Display 1024*768 Pixels Panel 600CD/M2 60 Pin HSD104IXN1-A00

Product Details:
Place of Origin: China
Brand Name: Hannstar
Certification: Rohs,CE,FCC
Model Number: HSD104IXN1-A00
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation

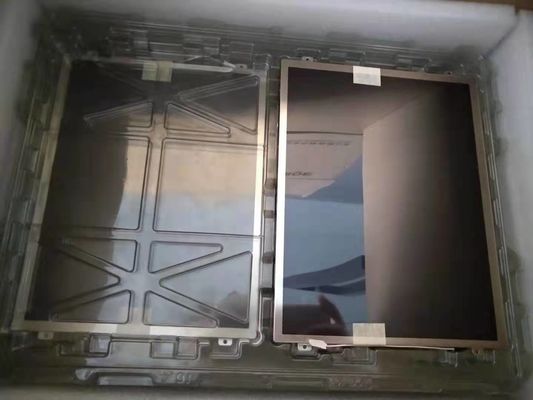

Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

Hannstar 10.4 Inch Car LCD Display 1024*768 Pixels Panel 600CD/M2 60 Pin HSD104IXN1-A00

Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.2m Colors
Model: XGA Style: Wide Screen High Resolution 1024*768Pixels
Brightness: 600cd Connector: 60
Contrast Ratio: 900:1 Working Time: 30k Hours
High Light:

lcd display screen

,

raspberry pi 7 touchscreen display

Hannstar 10.4inch car LCD Display HSD104IXN1-A00 ,1024*768 Pixels Panel 600CD/M2 60 Pin





  • Panel Brand
    HannStar
  • Panel Model
    HSD104IXN1-A00
  • Panel Size
    10.4"
  • Panel Type
    a-Si TFT-LCD, LCM
  • Resolution
    1024(RGB)×768 , XGA
  • Pixel Format
    RGB Vertical Stripe
  • Display Area
    211.2(W)×158.4(H) mm
  • Bezel Opening
    213.2(W)×160.4(H) mm
  • Outline Size
    236(W)×174.3(H) ×7(D) mm
  • Surface
    Antiglare, Hard coating (3H)
  • Brightness
    600 cd/m² (Typ.)
  • Contrast Ratio
    900:1 (Typ.) (TM)
  • Viewing Angle
    85/85/85/85 (Typ.)(CR≥10)
  • Display Mode
    IPS Pro, Normally Black, Transmissive
  • Best View on
    Symmetry
  • Response Time
    30 (Typ.)(Tr+Td)
  • Display Colors
    262K/16.2M 70% NTSC
  • Lamp Type
    4S8P WLED , 30K hours , Without Driver
  • Frequency
    60Hz
  • Touch Screen
    Without
  • Panel Weight
    316g (Typ.)

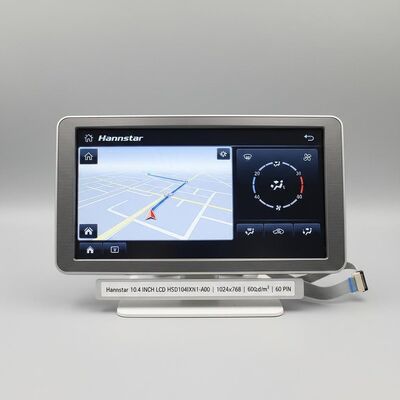

  • Application
    Hannstar 10.4 Inch Car LCD Display 1024*768 Pixels Panel 600CD/M2 60 Pin HSD104IXN1-A00 0
  • Signal Interface
  • LVDS (1 ch, 6/8-bit) , 60 pins , FPC
  • Input Voltage
  • 3.3/12.1/23/10V (Typ.)(DVDD/AVDD/VGH/VGL)
  • Environment
  • Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

HannStar Display Corporation (hereafter called HannStar) HSD104IXN1-A00 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: Hight Brightness, WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, einklcd recommend that this model be applied to Automotive Display etc. According to the information stored in einklcd this model mass production on Q3, 2016, Now this model is in production.  We inputted this model's specification on Feb 22 2017 for the first time, and the latest update on Jul 11 2018. If you want to embed HSD104IXN1-A00 LCM in your future product, einklcd strongly recommend that you should contact with HannStar or it's distributor to learn lateast production and specification detail. The HSD104IXN1-A00 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



Hannstar 10.4 Inch Car LCD Display 1024*768 Pixels Panel 600CD/M2 60 Pin HSD104IXN1-A00 1



All LCD models we sales on line with ONE year quality warranty.

All  LCD models was full  test one by one before delivery.
