| Brand Name: | auo |
| Model Number: | A080XN01 V0 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

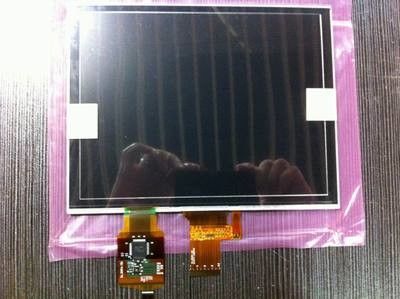

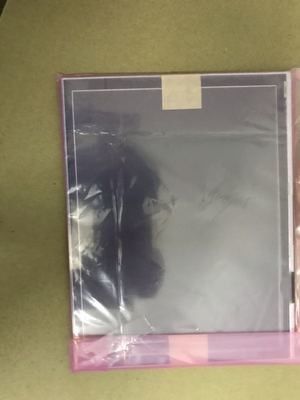

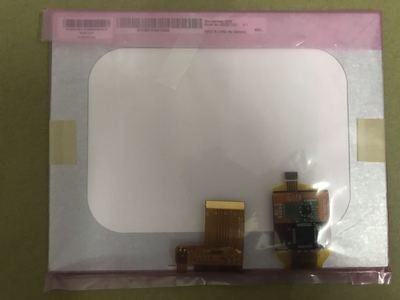

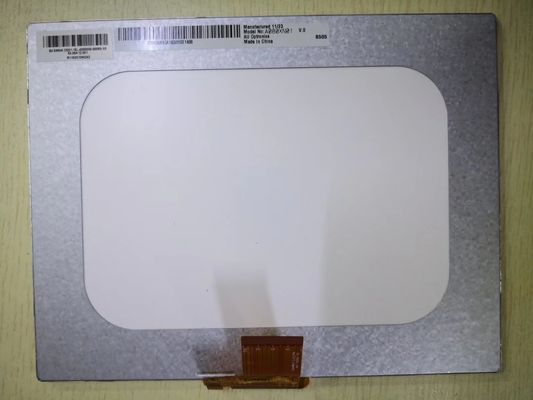

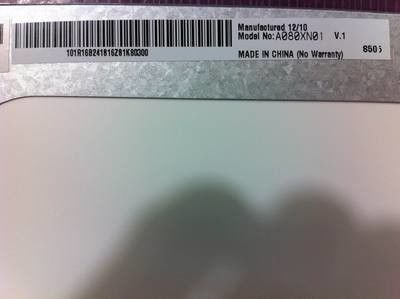

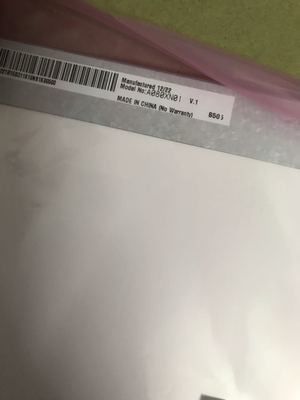

AUO 8inch Industrial LCD Display A080XN01 V0 V1 ,1024*768 Pixels Panel 300CD/M2 40 Pin
| Brand |
|---|
| Diagonal Size |
| Pixel Format |
| Active Area |
| Bezel Area |
| Luminance |
| View Direction |
| Viewing Angle |
| Support Color |
| Weight |
| Frame Rate |
| AUO |
| 8.0 inch |
| 1024(RGB)×768 [XGA] |
| 162.048(H)×121.536(V) mm |
| 165.45(H)×124.94(V) mm |
| 300 cd/m² (Typ.) |
| 9 o'clock |
| 55/55/75/75 (Typ.)(CR≥10) |
| 16.2M 45% NTSC |
| - |
| 60Hz |
| Model |
| Type |
| Configuration |
| Outline Dim. |
| Treatment |
| Contrast Ratio |
| Response Time |
| Operating Mode |
| Light Source |
| Designed For |
| Touch Panel |
| A080XN01 V0 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 183(H)×141(V) mm |
| Antiglare, Hard coating (3H) |
| 700:1 (Typ.) (TM) |
| 15/10 (Typ.)(Tr/Td) |
| TN, Normally White, Transmissive |
| WLED [3S10P] , 15K hours , W/O Driver |
|
|
| Without |

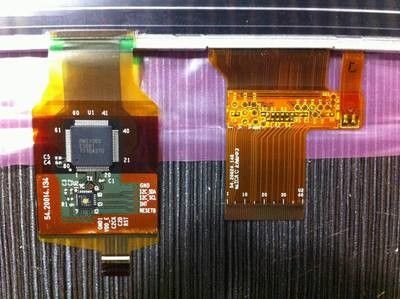

| Interface Type | 40 pins LVDS (1 ch, 8-bit) , FPC |
|---|---|
| Power Supply | 3.3/5/-5/22/-10V (Typ.)(VDDIO/VDPA/VDNA/VGH/VGL) |
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
The A080XN01 V0 (Alias: A080XN01 V.0) is a 8.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C . It's general features are summarized by Eiknlcd in the following: WLED Backlight, U/D,L/R Reverse, Matte . Based on its features, einklcd recommend that this model be applied to Gaming etc. According to the information stored in Panelook this model mass production on Q1, 2011, Now this model is discontinued. We inputted this model's specification on Apr 2 2013 for the first time, and the latest update on Feb 20 2014. If you want to embed A080XN01 V0 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The A080XN01 V0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
