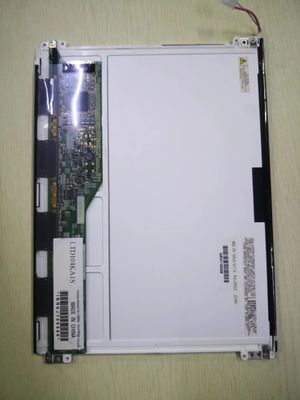

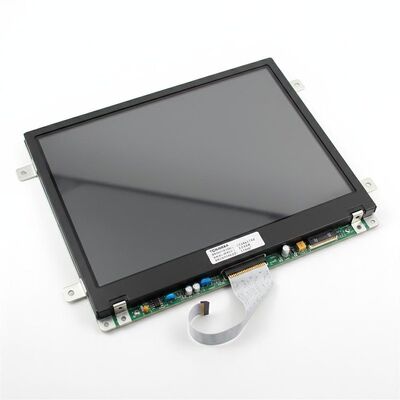

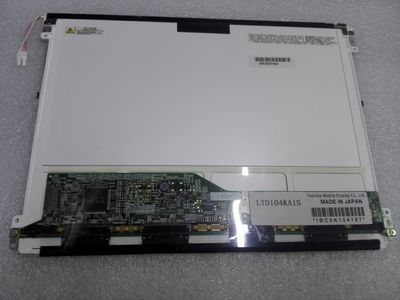

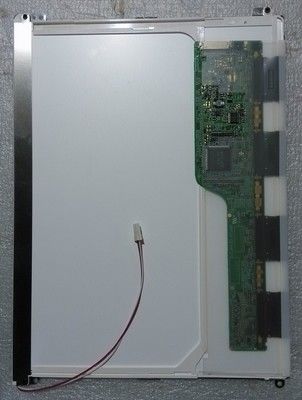

• Toshiba Industrial LCD Display LTD104KA1S ,1024*768 Pixels Panel 170CD/M2 14 Pin
•
• Panel Brand
• Toshiba Matsushita
• Panel Model
  LTD104KA1S

• Panel Size
  10.4"
• Panel Type
  LTPS TFT-LCD, LCM

• Resolution
  1024(RGB)×768 , XGA
• Pixel Format
  RGB Vertical Stripe

• Display Area
  210.4(W)×157.8(H) mm
• Bezel Opening
  215.0(W)×162.5(H) mm

• Outline Size
  238.6(W)×173.2(H) mm
• Surface
  -

• Brightness
  170 cd/m² (Typ.)
• Contrast Ratio
  250:1 (Typ.) (TM)

• Viewing Angle
  45/45/20/30 (Typ.)(CR≥10)
• Display Mode
  TN, Normally White, Transmissive

• Best View on
  6 o'clock
• Response Time
  50/50 (Max.)(Tr/Td)

• Display Colors
  262K
• Lamp Type
  1 pcs CCFL , Without Driver

• Frequency
  -
• Touch Screen
  Without

• Shape Style
  -
• Application


• Signal Interface
• LVDS (1 ch, 6-bit) , 14 pins , Connector

• Input Voltage
• 3.3V (Typ.)

• Environment
• Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

The LTD104KA1S is a 10.4 inch diagonal LTPS TFT-LCD display panel product from Toshiba Matsushita Display Technology Co., Ltd (hereafter called Toshiba Matsushita), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . Based on its features, einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q4, 2007, Now this model is discontinued. We inputted this model's specification on Jan 6 2012 for the first time, and the latest update on Feb 15 2017. If you want to embed LTD104KA1S LCM in your future product, einklcd strongly recommend that you should contact with Toshiba Matsushita or it's agent to learn lateast production and specification detail. The LTD104KA1S production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
