12.3" 1920*720 Pixels 850cd Brightness 50 Pin Connector Car LCD Display Automotive TFT-LCD Panel

12.3" 1920*720 Pixels 850cd Brightness 50 Pin Connector Car LCD Display Automotive TFT-LCD Panel

Brand Name:	hanstar

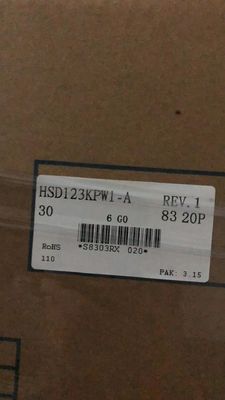

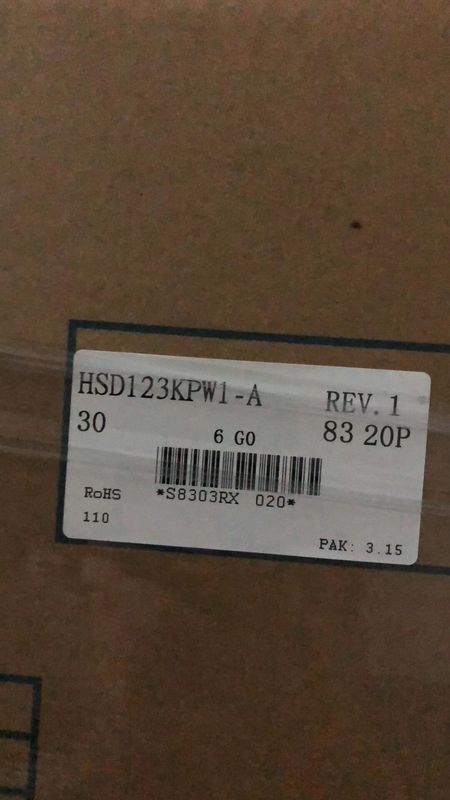

Model Number:	HSD123KPW1-A
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

Style:

Wide Screen High Resolution 1920*720

Brightness:

850cd

Connector:

Contrast Ratio:

1000:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

lcd display screen

tft lcd display

Product Description

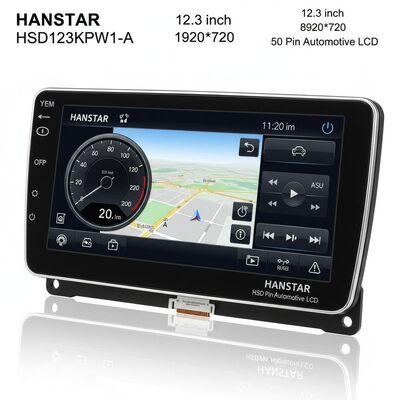

850CD/M2 50 Pin Automotive LCD Display 1920*720 Pixels HSD123KPW1-A Hanstar 12.3"

Product Overview

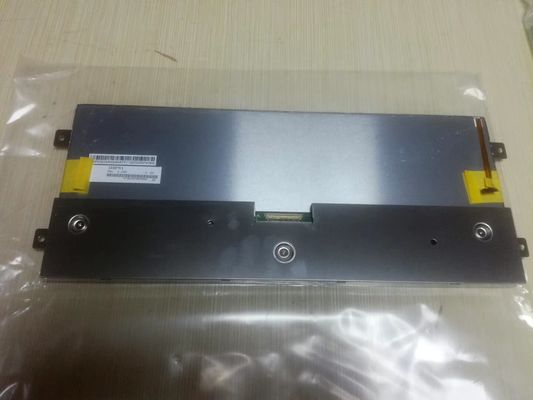

HSD123KPW1-A30 is a 12.3-inch diagonal a-Si TFT-LCD display panel from HannStar Display Corporation, featuring an integrated WLED backlight system designed for automotive applications with wide temperature operation and high brightness capabilities.

Technical Specifications

Panel Brand	HannStar
Panel Model	HSD123KPW1-A30
Panel Size	12.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*720
Pixel Format	RGB Vertical Stripe
Display Area	292.032(W)*109.512(H) mm
Bezel Opening	294.8(W)*112.1(H) mm
Outline Size	308.1(W)130(H)15.6(D) mm
Surface	Antiglare
Brightness	850 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS Pro, Normally Black, Transmissive
Best View on	Symmetry
Response Time	17/18 (Typ.)(Tr/Td)
Display Colors	16.7M 71% NTSC
Lamp Type	11S4P WLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	520g (Typ.)
Signal Interface	LVDS (2 ch, 8-bit), 50 pins, Connector
Input Voltage	3.3V (Typ.)
Operating Temperature	-30 ~ 85°C
Storage Temperature	-30 ~ 85°C

Key Features

Wide Temperature Operation (-30°C to 85°C)
High Brightness 850 cd/m²
WLED Backlight System
Bar Display Format
Matte Antiglare Surface
IPS Pro Technology for Superior Viewing Angles
Automotive Grade Reliability

Application Information

This model is specifically designed for automotive display applications and entered mass production in Q2 2017. The panel remains in active production as of the latest specification update.

Important Note: For integration into your products, we strongly recommend contacting HannStar or their authorized agents to obtain the latest production status and detailed specifications. The information provided here is for reference purposes only and should not be used as the sole basis for decision-making.
