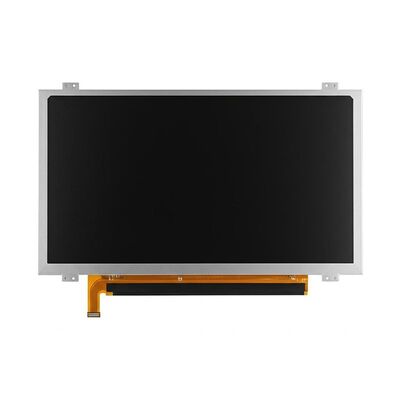

AUO 15.6" Industrial LCD Display 1920*1080 Pixels 400CD/M2 30 Pin G156HTN02.1 500/1

Manufacturer

AUO

Model Name

G156HTN02.1

Screen Size

15.6 inch

Screen Type

LCM, a-Si TFT-LCD

Pixel Number

1920(RGB)×1080 (FHD)

Arrangement

RGB Vertical Stripe

Active Area(mm)

344.16 × 193.59 (H×V)

Outline(mm)

363.8 × 215.9 × 9.8 (H×V×D)

Bezel Area(mm)

347.06 × 196.49 (H×V)

Treatment

Antiglare (Haze 25%), Hard coating (3H)

Luminance

400 cd/m² (Typ.)

Contrast Ratio

500 : 1 (Typ.) (TM)

Viewing Angle

70/70/60/60 (Typ.)(CR≥10)

Response

8 (Typ.)(Tr+Td) ms

Good View at

-

Work Mode

TN, Normally White, Transmissive

Color Depth

16.7M 72% NTSC

Backlight

WLED , 50K hours , With LED Driver

Mass

TBD

Used for

Refresh Rate

60Hz

Touchscreen

Without

Signal Type

LVDS (2 ch, 8-bit) , Connector , 30 pins

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 70 °C

AU Optronics Corp. (hereafter called AUO) G156HTN02.1 is a 15.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by EINKLCDin the following: Antiglare Surface, Landscape type, White LED Backlight, Lamp life ≥ 50K hours, Wide Aspect Ratio, Signal Interface Position Reverse . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q3, 2015, Now this model is discontinued.  We inputted this model's specification on Dec 19 2016 for the first time, and the latest update on Aug 15 2019. If you want to embed G156HTN02.1 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The G156HTN02.1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
