| Brand Name: | NEC |
| Model Number: | NL4864HL11-01B |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
Brand
NEC
Model
NL4864HL11-01B
Diagonal Size
3.5 inch
Type
LTPS TFT-LCD, LCM
Pixel Format
480(RGB)×640 [VGA]
Configuration
RGB Vertical Stripe
Active Area
53.28(H)×71.04(V) mm
Outline Dim.
63.5(H)×85(V) mm
Bezel Area
55.65(H)×73.52(V) mm
Treatment
Clear, Hard coating (3H)
Luminance
200 cd/m² (Typ.)
Contrast Ratio
180:1 (Typ.) (TM) 15:1 (Typ.) (RF)
View Direction
6 o'clock
Response Time
30 (Typ.)(Tr+Td)
Viewing Angle
30/30/30/35 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transflective
Support Color
262K 40% (CIE1931)
Light Source
WLED , W/O Driver
Weight
43.0g (Typ.)
Designed For
Frame Rate
60Hz
Touch Panel
4-wire Resistive Touch
Interface Type
45 pins CMOS (1 ch, 6-bit) , FPC
Power Supply
3.0/3.0V (Typ.)(VCC/VCCIO)
Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

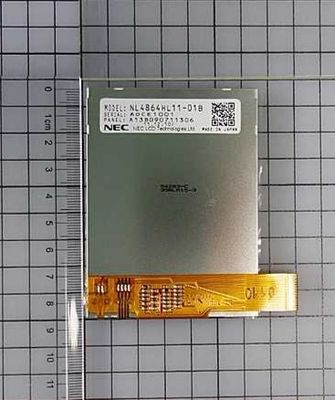

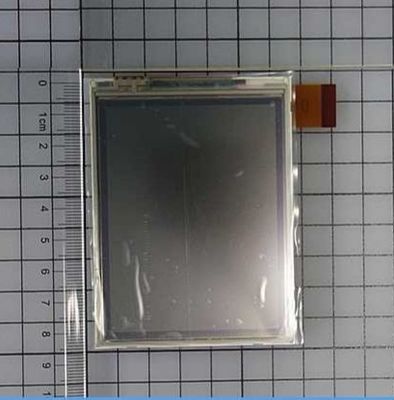

NL4864HL11-01B is a 3.5" diagonal LTPS TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: Portrait type, With Touchscreen, Transflective, White LED Backlight, U/D,L/R Reverse , R-EVT (SR-NLT), Selectable VGA/QVGA, Embedded DC-DC circuitry. Based on its features, einklcd recommend that this model be applied to Handheld & PDA etc. According to the information stored in einklcd this model mass production on Q3, 2007 and last shippment on Q3, 2015, Now this model is discontinued. We inputted this model's specification on Mar 20 2013 for the first time, and the latest update on Mar 8 2019. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with NEC or it's agent to learn lateast production and specification detail of NL4864HL11-01B. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
