| Brand Name: | Innolux |
| Model Number: | V500DK2-KS1 |
| MOQ: | 10pcs |
| Price: | Negotiation |

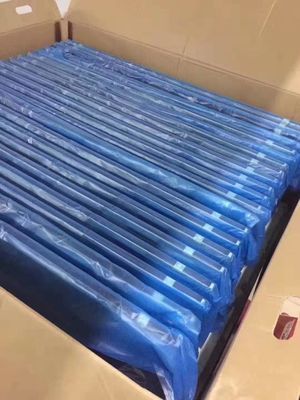

| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

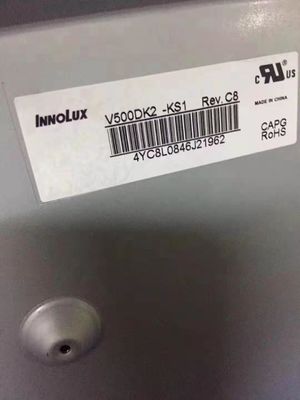

| Manufacturer | Innolux | Model Name | V500DK2-KS1 Rev.C8 |
|---|---|---|---|
| Screen Size | 50 inch | Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 3840(RGB)×2160 (UHD) | Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 1095.84 × 616.41 (H×V) | Outline(mm) | 1115.04 × 638.41 × 28.6 (H×V×D) |
| Bezel Area(mm) | 1103.04 × 622.41 (H×V) | Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥20) | Response | 9.5 (Typ.)(G to G) ms |
| Good View at | Symmetry | Work Mode | Super MVA, Normally Black, Transmissive |
| Color Depth | 1.07B 72% (CIE1931) | Backlight | WLED , 30K hours , With LED Driver |
| Mass | 11.7/12.3Kgs (Typ./Max.) | Used for |
|
| Refresh Rate | 120Hz | Touchscreen | Without |
| Signal Type | V-by-One 8 lane , Connector , 51 pins | ||
| Voltage Supply | 12.0V (Typ.) | ||
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||

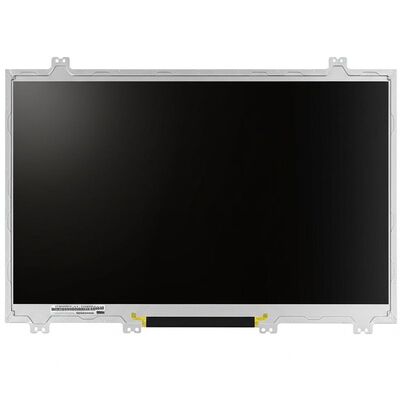

The V500DK2-KS1 Rev.C8 is a 50 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: High Color Gamut, Antiglare Surface, 10 bit, Wide Viewing Angle, 3D Display, Landscape type, White LED Backlight, Wide Aspect Ratio, Signal Interface Position Reverse, 120Hz Scan , Center Luminance of White 3D: 60 cd/m². Based on its features, einklcd recommend that this model be applied to TV Sets etc. According to the information stored in einklcd this model mass production on Q4, 2013, Now this model is discontinued. We inputted this model's specification on Feb 25 2014 for the first time, and the latest update on Jan 22 2017. If you want to embed V500DK2-KS1 Rev.C8 LCM in your future product, einklcd strongly recommend that you should contact with Innolux or it's agent to learn lateast production and specification detail. The V500DK2-KS1 Rev.C8 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
