| Brand Name: | Innolux |
| Model Number: | AT102TN03 V8 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
| Panel Brand |
|---|
| Panel Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Weight |
| Innolux |
| 10.2" |
| 800(RGB)×480 , WVGA |
| 222(W)×132.48(H) mm |
| 235(W)×145.8(H) ×6.4(D) mm |
| 350 cd/m² (Typ.) |
| 65/65/45/65 (Typ.)(CR≥10) |
| 6 o'clock |
| 262K 50% (CIE1931) |
| 60Hz 332g (Typ.) |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| AT102TN03 V.8 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 225.3(W)×135.7(H) mm |
| Antiglare |
| 300:1 (Typ.) (TM) |
| TN, Normally White, Transmissive |
| 15/20 (Typ.)(Tr/Td) |
| 3S10P WLED , 20K hours , Without Driver |
| Without |
|
|
| Signal Interface | TTL (1 ch, 6-bit) , 60 pins , FPC |
|---|---|
| Input Voltage | 3.3/9.2/16/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |

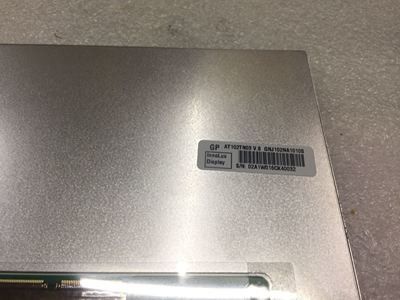

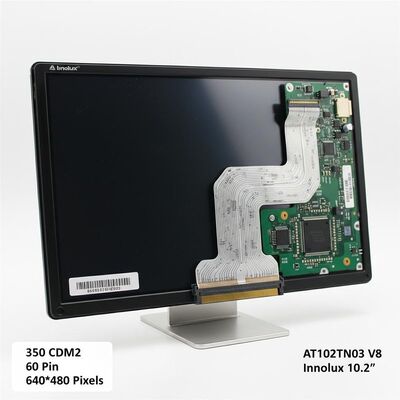

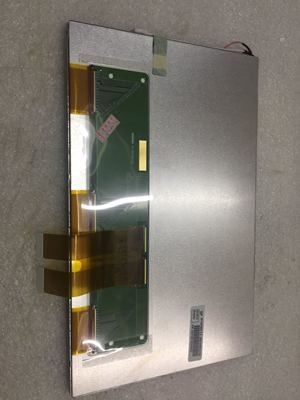

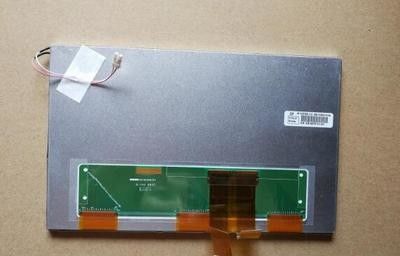

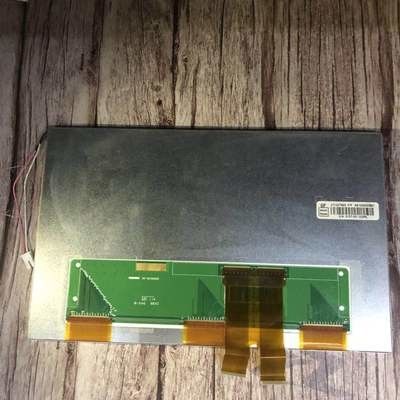

AT102TN03 V.8 is a 10.2" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C . It's general features are summarized by einklcd in the following: Antiglare Surface, Landscape type, Wide Temperature, White LED Backlight, Wide Aspect Ratio, U/D,L/R Reverse . Based on its features, einklcd recommend that this model be applied to Automotive Display etc. According to the information stored in einklcd this model mass production on Q3, 2009, Now this model is in production. We inputted this model's specification on Apr 28 2012 for the first time, and the latest update on Sep 3 2018. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with Innolux or it's agent to learn lateast production and specification detail of AT102TN03 V.8. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
