| Brand Name: | LG |
| Model Number: | LM265SQ1-SLA1 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

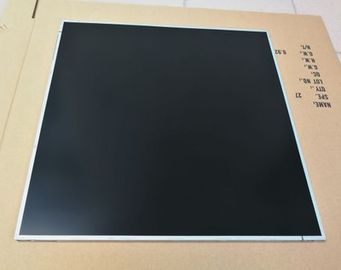

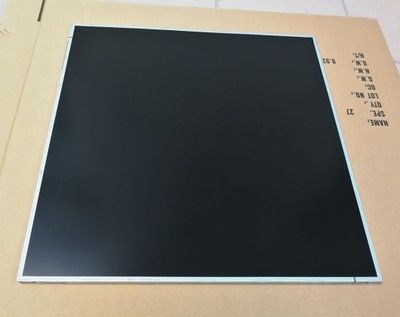

Digital Signage Industrial LCD Display 1920*1920 Pixels 300CD/M2 92 Pin LM265SQ1-SLA1
Brand
LG Display
Model
LM265SQ1-SLA1
Diagonal Size
26.5 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1920(RGB)×1920
Configuration
RGB Vertical Stripe
Active Area
475.776(H)×475.776(V) mm
Outline Dim.
491.8(H)×491.8(V) ×13.1(D) mm
Bezel Area
479.0(H)×479.0(V) mm
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
14 (Typ.)(G to G)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Support Color
16.7M 76% (CIE1931)
Light Source
WLED , 30K hours , W/O Driver
Weight
2.21Kgs (Typ.)
Frame Rate
60Hz
Touch Panel
Without
Interface Type
92 pins LVDS (4 ch, 8-bit) , Connector
Power Supply
10V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LM265SQ1-SLA1 (Alias: LM265SQ1 (SL)(A1)) is a 26.5" diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: High Color Gamut, Antiglare Surface, Wide Viewing Angle, Landscape type, White LED Backlight , sRGB. Based on its features, Einklcd recommend that this model be applied to Gaming, Industrial, Digital Signage etc. According to the information stored in Einklcd this model mass production on Q1, 2015, Now this model is in production. We inputted this model's specification on Aug 9 2013 for the first time, and the latest update on May 24 2017. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's agent to learn lateast production and specification detail of LM265SQ1-SLA1. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
