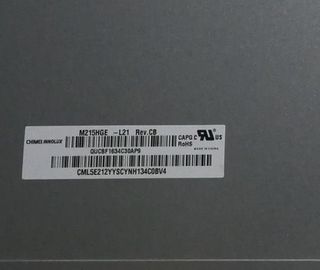

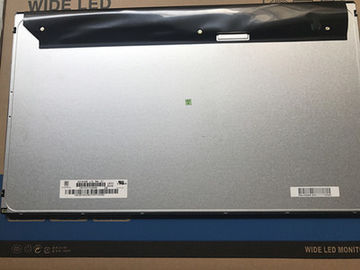

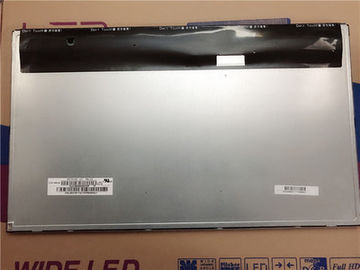

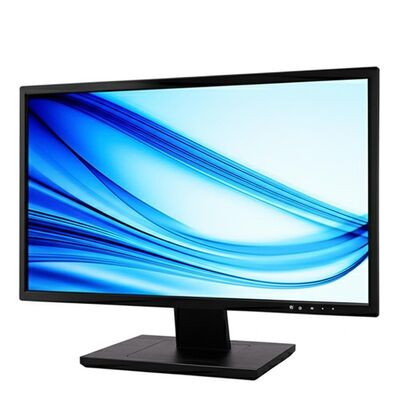

Innolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 Pixels

Brand Name:	innolux
Model Number:	M215HGE-L21
MOQ:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Taiwan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.2m Colors

Model:

Style:

Wide Screen High Resolution 1920*1080

Brightness:

250cd

Connector:

30pin

Contrast Ratio:

1000:1

Working Life:

40K Hours

Supply Ability:

3000pcs per week

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

Brand

Chimei Innolux

Model

M215HGE-L21

Diagonal Size

21.5 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

1920(RGB)×1080 [FHD]

Configuration

RGB Vertical Stripe

Active Area

476.64(H)×268.11(V) mm

Outline Dim.

495.6(H)×292.2(V) ×11.5(D) mm

Bezel Area

479.8(H)×271.3(V) mm

Treatment

Antiglare (Haze 25%), Hard coating (3H)

Luminance

250 cd/m² (Min.)

Contrast Ratio

1000:1 (Typ.) (TM)

View Direction

6 o'clock

Response Time

1.5/3.5 (Typ.)(Tr/Td)

Viewing Angle

85/85/80/80 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Support Color

16.7M 72% (CIE1931)

Light Source

WLED [11S4P] , 40K hours , W/O Driver

Weight

1.91/2.10Kgs (Typ./Max.)

Designed For

Frame Rate

60Hz

Touch Panel

Without

Interface Type

30 pins LVDS (2 ch, 8-bit) , Connector

Power Supply

5.0V (Typ.)

Environment

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

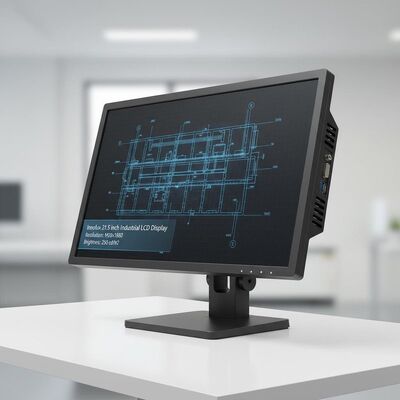

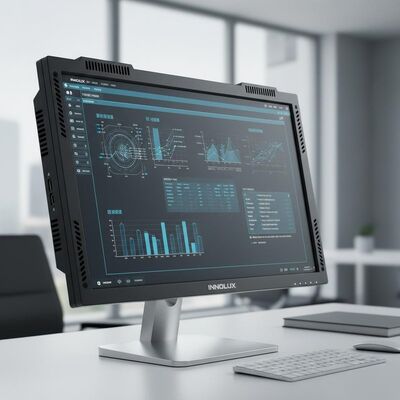

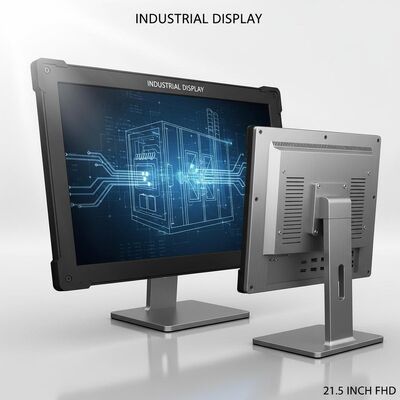

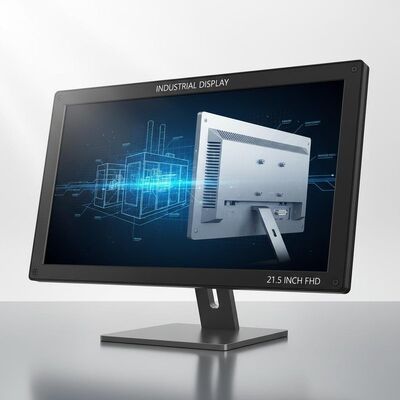

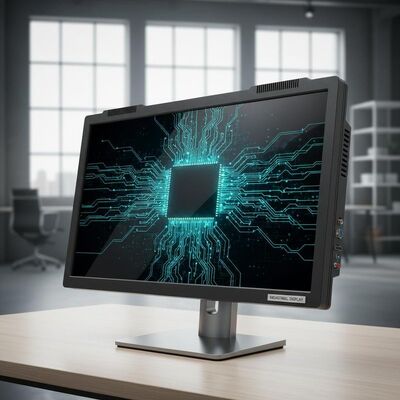

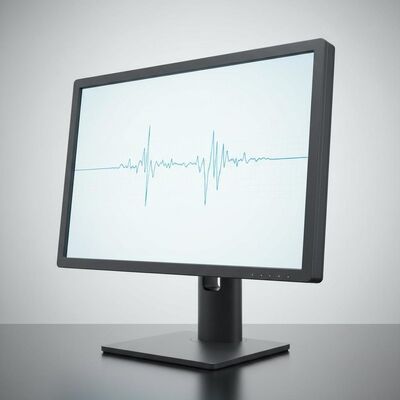

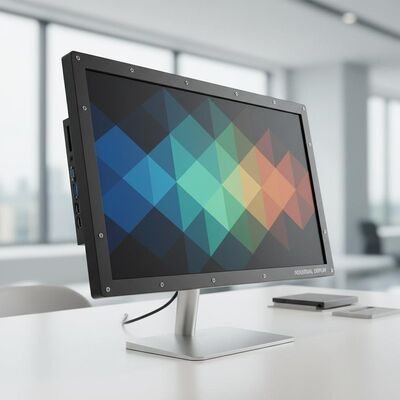

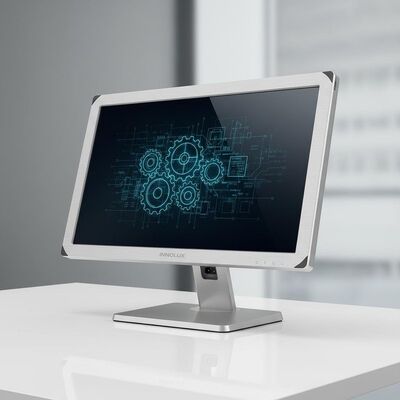

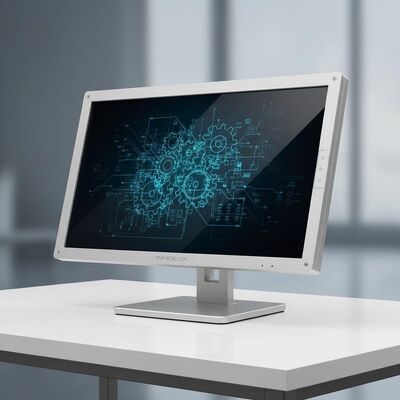

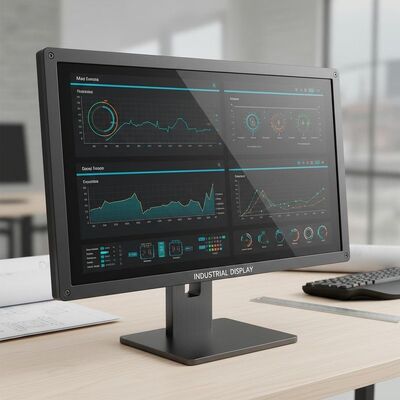

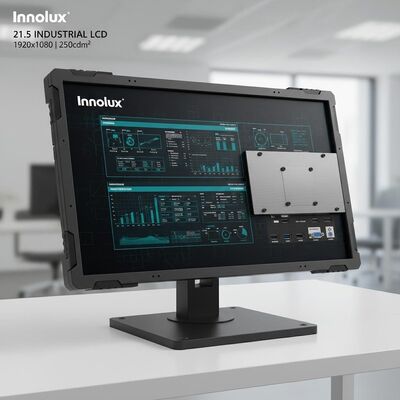

Innolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 Pixels 2

It's 250cd/m2 Innolux 21.5nch lcd MODEL for industrial ,Desktop computer use.

All our LCD LED screen monitor module panel products will be full test one by one before sending .
