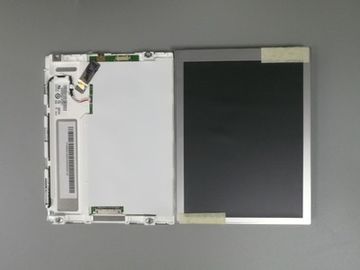

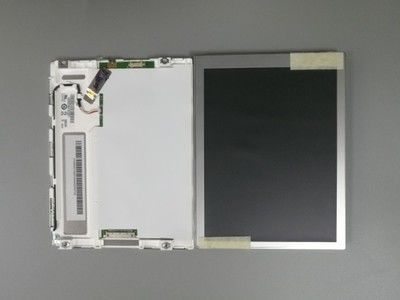

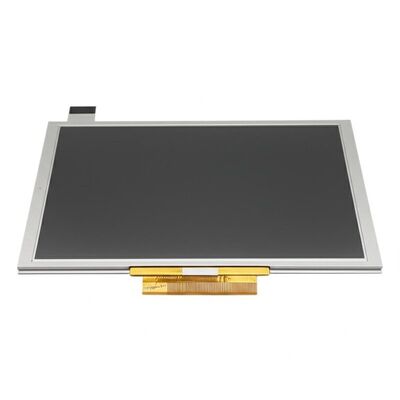

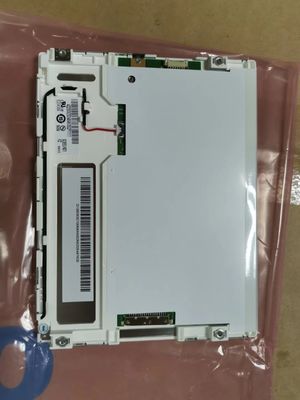

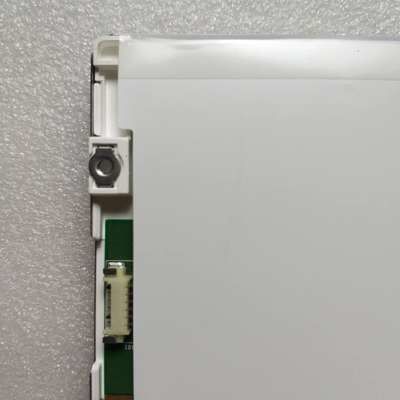

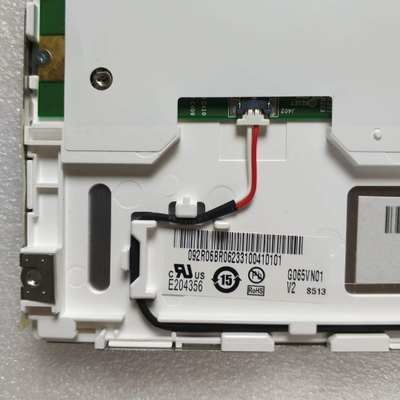

6.5 Inch Industrial Control Monitor Display Lcd 800cd/m2 High Brightness 20 Pin G065VN01 V2

Brand Name:	auo
Model Number:	G065VN01 V2
MOQ:	10pcs
Price:	Negotiation

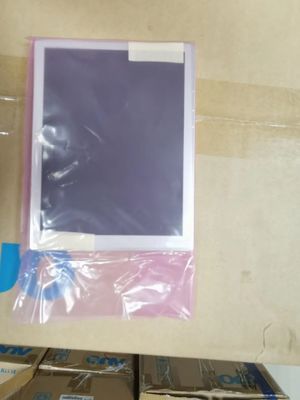

Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Taiwan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.2m Colors

Model:

Style:

Wide Screen High Resolution 640*480

Brightness:

800cd

Connector:

20pin

Contrast Ratio:

600:1

Working Life:

50K Hours

Supply Ability:

3000pcs per week

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

Brand
AUO
Model
G065VN01 V2

Diagonal Size
6.5 inch
Type
a-Si TFT-LCD, LCM

Pixel Format
640(RGB)×480 [VGA]
Configuration
RGB Vertical Stripe

Active Area
132.48(H)×99.36(V) mm
Outline Dim.
153(H)×118(V) ×11.2(D) mm

Bezel Area
135.9(H)×102.8(V) mm
Treatment
Glare (Haze 0%), Hard coating (3H), Antireflection

Luminance
800 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (TM)

View Direction
6 o'clock
Response Time
15/10 (Typ.)(Tr/Td)

Viewing Angle
80/80/70/70 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive

Support Color
262K/16.2M 55% (CIE1931)
Light Source
WLED , 50K hours , With LED Driver

Weight
170g (Typ.)
Designed For

Frame Rate
60Hz
Touch Panel
Without

Interface Type

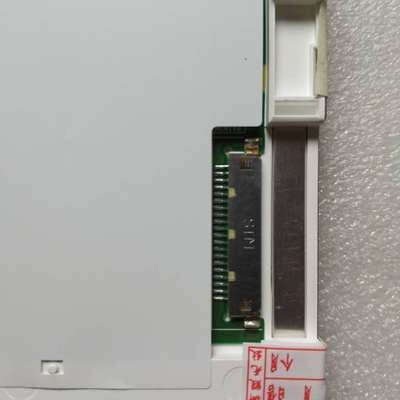

20 pins LVDS (1 ch, 6/8-bit) , Connector

Power Supply
3.3V (Typ.)

Environment
Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C

It's 800cd/m2 AUO 6.5nch lcd MODEL for industrial use,outdoor high brightness use.

All our LCD LED screen monitor module panel products will be full test one by one before sending .
