Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Material: | Glass Oled | Color: | 16.7m Colors |
| Model: | WLED | Style: | Wide Screen High Resolution 1920*1080 |
| Brightness: | 250cd | Connector: | 30 |
| Contrast Ratio: | 1000:1 | Working Time: | 30k Hours |
| High Light: | touch screen computer monitor,high resolution touch screen monitor |
||
Manufacturer
BOE
Model Name
MV270FHB-N20
Screen Size
27.0 inch
Screen Type
CELL , a-Si TFT-LCD
Pixel Number
1920(RGB)×1080 (FHD)
Arrangement
RGB Vertical Stripe
Active Area(mm)
597.888 × 336.312 (H×V)
Outline(mm)
607.048 × 346.642 (H×V×D)
Bezel Area(mm)
-
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
0 cd/m²
Contrast Ratio
1000 : 1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response
14 (Typ.)(G to G) ms
Good View at
Symmetry
Work Mode
ADS, Normally Black, Transmissive
Glass Thickness
0.70+0.70 mm
Transmissivity
5.7% (Typ.)
Color Depth
16.7M 72% (CIE1931)
Backlight
No B/L
Mass
625g (Typ.)
Used for
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (2 ch, 8-bit) , Connector , 30 pins
Voltage Supply
5.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

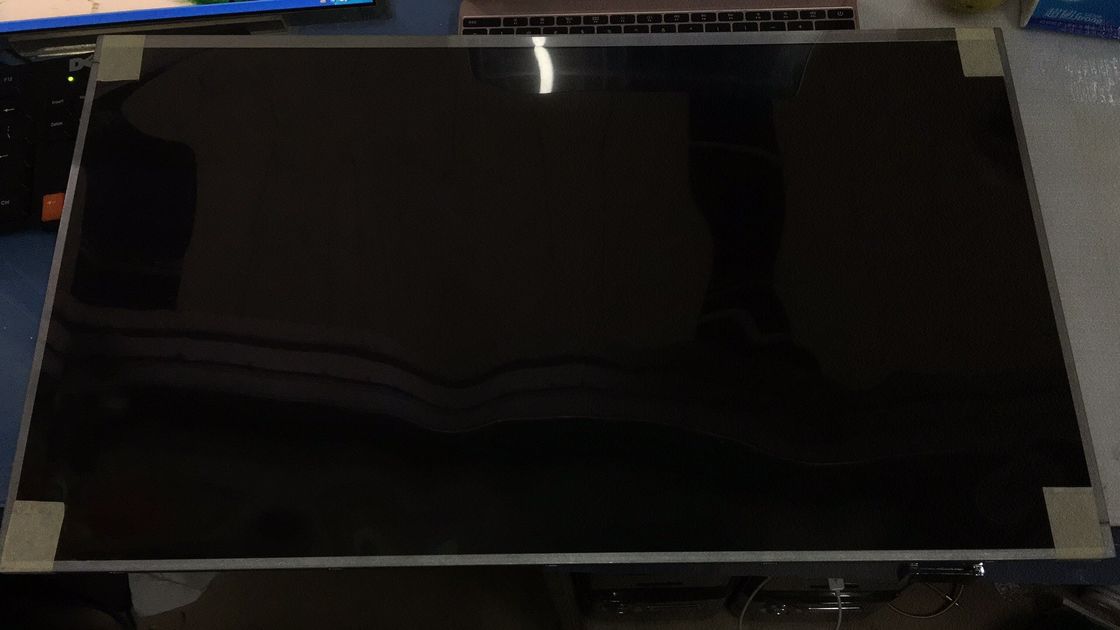

MV270FHB-N20 is a 27.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: High Color Gamut, Antiglare Surface, Wide Viewing Angle, Landscape type, Wide Aspect Ratio . Based on its features, einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q1, 2016, Now this model is in production. We inputted this model's specification on Mar 21 2017 for the first time, and the latest update on May 16 2019. If you want to embed the CELL in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of MV270FHB-N20. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All our LCD LED screen monitor module panel products will be full test one by one before sending .
