| Brand Name: | TIANMA |
| Model Number: | TM121TDSG02 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
| Panel Brand | TIANMA | Panel Model | TM121TDSG02 |
|---|---|---|---|
| Panel Size | 12.1" | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768 , XGA | Pixel Format | RGB Vertical Stripe |
| Display Area | 245.76(W)×184.32(H) mm | Bezel Opening | 250.8(W)×189.4(H) mm |
| Outline Size | 279(W)×209(H) ×9.1(D) mm | Surface | Antiglare, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response Time | 3/5 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M 55% (CIE1931) | Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz | Touch Screen | Without |
| Panel Weight | 483g (Typ.) | Application |
|
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins , Connector | ||
| Input Voltage | 3.3V (Typ.) | ||
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||

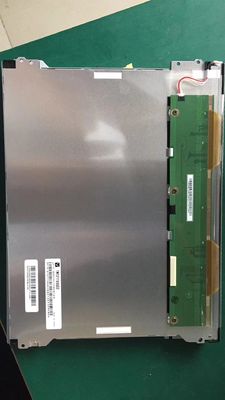

TM121TDSG02 is a 12.1" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. (hereafter called TIANMA), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: Antiglare Surface, 6/8 bit Selectable, Wide Viewing Angle, Landscape type, White LED Backlight, Lamp life ≥ 50K hours, 180 Reverse . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q4, 2015, Now this model is in production. We inputted this model's specification on Oct 27 2015 for the first time, and the latest update on Feb 28 2019. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with TIANMA or it's agent to learn lateast production and specification detail of TM121TDSG02. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
|
