| Brand Name: | LG |
| Model Number: | LM240WU9-SLA1 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
| Manufacturer | LG Display | Model Name | LM240WU9-SLA1 |
|---|---|---|---|
| Screen Size | 24.0 inch | Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1200 (WUXGA) | Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 518.4 × 324 (H×V) | Outline(mm) | 546.4 × 352 × 16 (H×V×D) |
| Bezel Area(mm) | 522.4 × 328.0 (H×V) | Treatment | Antiglare, Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Response | 6 (Typ.)(G to G) ms |
| Good View at | Symmetry | Work Mode | AH-IPS, Normally Black, Transmissive |
| Color Depth | 1.07B 99% (Adobe) | Backlight | GB-r LED , 30K hours , No Driver |
| Mass | 2.45/2.58Kgs (Typ./Max.) | Used for |
|
| Refresh Rate | 60Hz | Touchscreen | Without |
| Signal Type | LVDS (2 ch, 10-bit) , Connector , 51 pins | ||
| Voltage Supply | 12.0V (Typ.) | ||
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||

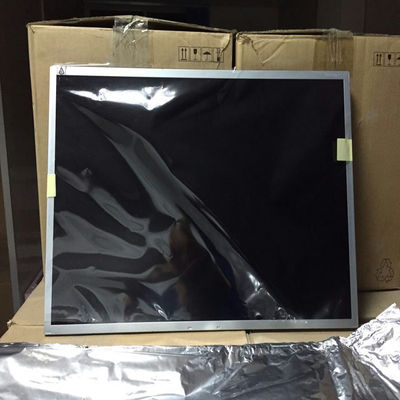

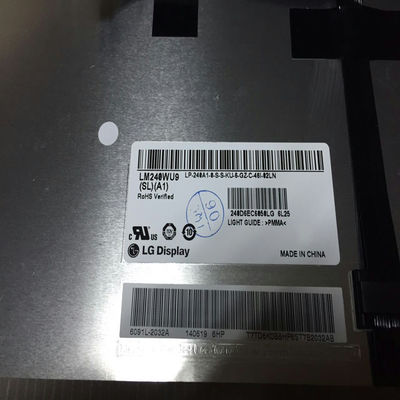

LM240WU9-SLA1 (Alias: LM240WU9 (SL)(A1)) is a 24.0" diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), with an integral GB-r LED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: Adobe RGB, Antiglare Surface, 10 bit, Wide Viewing Angle, Landscape type, Wide Aspect Ratio, Normal Signal Interface Position , Adobe RGB. Based on its features, einklcd recommend that this model be applied to Desktop Monitor, Industrial, Medical Imaging etc. According to the information stored in einklcd this model mass production on Q4, 2012 and last shippment on Q2, 2016, Now this model is discontinued. We inputted this model's specification on Apr 8 2013 for the first time, and the latest update on Aug 31 2018. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's agent to learn lateast production and specification detail of LM240WU9-SLA1. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
|
