| Brand Name: | LG |
| Model Number: | LB121S03-TL05 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
| Panel Brand |
|---|
| Panel Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Weight |
| LG Display |
| 12.1" |
| 800(RGB)×600 , SVGA |
| 246(W)×184.5(H) mm |
| 276(W)×209(H) ×9.5(D) mm |
| 450 cd/m² (Typ.) |
| 70/70/55/65 (Typ.)(CR≥10) |
| - |
| 262K/16.7M 71% (CIE1931) |
| 60Hz |
| 515/530g (Typ./Max.) |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| LB121S03-TL05 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| - |
| Antiglare |
| 600:1 (Typ.) (TM) |
| TN, Normally White, Transmissive |
| 10/20 (Typ.)(Tr/Td) |
| WLED , 50K hours , With LED Driver |
| Without |
|
|
| Signal Interface | LVDS (1 ch, 6/8-bit) , 30 pins , Connector |
|---|---|
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

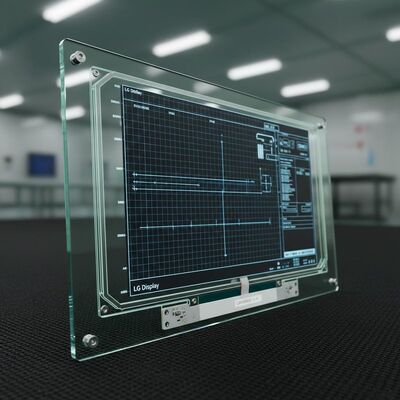

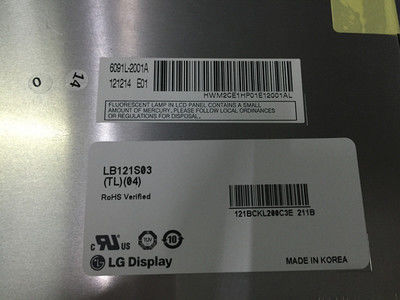

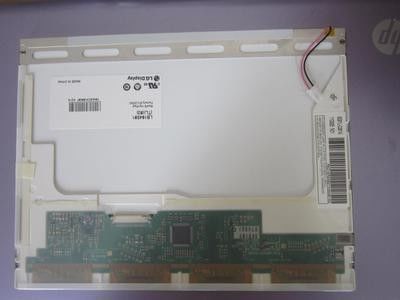

The LB121S03-TL05 (Alias: LB121S03 (TL)(05)) is a 12.1 inch diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by Panelook in the following: Antiglare Surface, 6/8 bit Selectable, Landscape type, White LED Backlight, Lamp life ≥ 50K hours . Based on its features, EINKLCD recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q1, 2015 and last shippment on Q4, 2016, Now this model is discontinued. We inputted this model's specification on Mar 13 2015 for the first time, and the latest update on Jun 21 2016. If you want to embed LB121S03-TL05 LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's agent to learn lateast production and specification detail. The LB121S03-TL05 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
|
