Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Material: | Glass Oled | Color: | 262k Colors |
| Model: | WLED | Style: | Wide Screen High Resolution 240*128 |
| Brightness: | 200cd | Connector: | 26pin |
| Contrast Ratio: | 20:1 | Working Life: | 40K Hours |
| High Light: | lcd display screen,tft lcd display |
||
| Manufacturer |
|---|
| Screen Size |
| Pixel Number |
| Active Area(mm) |
| Bezel Area(mm) |
| Luminance |
| Viewing Angle |
| Good View at |
| Color Depth |
| Mass |
| Refresh Rate |
| KOE |
| 5.1 inch |
| 240×128 |
| 119.98 × 63.98 (H×V) |
| 124.0 × 70.0 (H×V) |
| 200 (Typ.)(cd/m²) |
| 40/40/35/55 (Typ.)(CR≥2) |
| 6 o'clock |
| Monochrome |
| - |
| - |
| Model Name |
| Screen Type |
| Arrangement |
| Outline(mm) |
| Treatment |
| Contrast Ratio |
| Work Mode |
| Response |
| Backlight |
| Used for |
| Touchscreen |
| SP14N01L6ALCZ |
| LCM , FSTN-LCD |
| Rectangle |
| 159.4 × 101 × 11 (H×V×D) |
| Antiglare |
| 20 : 1 (Typ.) (TM) |
| STN, Black/White (Positive), Transmissive |
| 330/150 (Typ.)(Tr/Td) ms |
| 1S7P WLED , 40K hours , No Driver |
|
|
| Without |
| Signal Type | 8-bit parallel , Connector , 26 pins |
|---|---|
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |

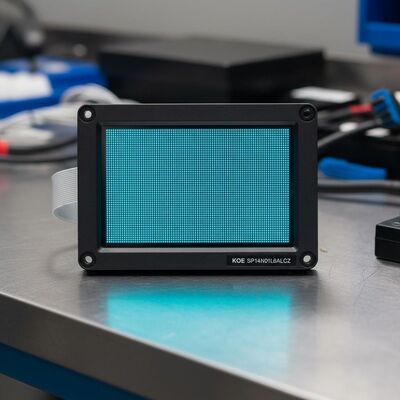

Kaohsiung Opto-Electronics Inc. (hereafter called KOE) SP14N01L6ALCZ is a 5.1 inch diagonal FSTN-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.2G (11.76 m/s²). It's general features are summarized by Panelook in the following: Antiglare Surface, Landscape type, White LED Backlight, Wide Aspect Ratio . Based on its features, EINKLCD recommend that this model be applied to Industrial etc.Built-in T6963C driver IC. According to the information stored in EINKLCD this model mass production on Q3, 2004, Now this model is in production. We inputted this model's specification on Dec 19 2012 for the first time, and the latest update on Aug 24 2018. If you want to embed SP14N01L6ALCZ LCM in your future product, Einklcd strongly recommend that you should contact with KOE or it's distributor to learn lateast production and specification detail. The SP14N01L6ALCZ production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All our LCD LED screen monitor module panel products will be full test one by one before sending .
