NEC 5.5 Inch Industrial LCD Display Monitor 320*240 Pixels NL3224BC35-20R WLED Model
All Category

Industrial LCD Display

LCD Touch Screen Monitor

Widescreen LCD Computer Monitors

PC LCD Module

Large LCD Display Screen

LCD TV Panel

Stretched LCD Display

Car LCD Display

E Ink Display Module

E Ink LCD Display

Medical LCD Panel
Contact Us
Mr. pippo tian
pippo@ridafone.com
+86 13590447319
Contact Now
NEC 5.5 Inch Industrial LCD Display Monitor 320*240 Pixels NL3224BC35-20R WLED Model
  • Name
  • Name
  • Name
  • Name

NEC 5.5 Inch Industrial LCD Display Monitor 320*240 Pixels NL3224BC35-20R WLED Model

Brand Name: NEC
Model Number: NL3224BC35-20R
MOQ: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Payment Terms: T/T,W, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
KOREA
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
262k Colors
Model:
WLED
Style:
Wide Screen High Resolution 320*240
Brightness:
350cd
Connector:
N/a
Contrast Ratio:
300:1
Working Life:
50K Hours
Supply Ability:
3000pcs per week
Highlight:

industrial panel pc touch screen

,

industrial computer monitor

Product Description
Brand
Diagonal Size
Pixel Format
Active Area
Bezel Area
View Direction
Viewing Angle
Support Color
Weight
Frame Rate
NEC
5.5 inch
320(RGB)×240 [QVGA]
111.36(H)×83.52(V) mm
116.4(H)×88.5(V) mm
-
-
262K
-
60Hz
Model
Type
Configuration
Outline Dim.
Treatment
Response Time
Operating Mode
Light Source
Designed For
Touch Panel
NL3224BC35-20R
a-Si TFT-LCD , LCM
RGB Vertical Stripe
134(H)×104.5(V) mm
-
-
TN, Normally White, Transmissive
CCFL [2 pcs] , W/O Driver
Without
Interface Type CMOS (1 ch, 6-bit) , Connector
Environment Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C



NEC 5.5 Inch Industrial LCD Display Monitor 320*240 Pixels NL3224BC35-20R WLED Model 0NEC 5.5 Inch Industrial LCD Display Monitor 320*240 Pixels NL3224BC35-20R WLED Model 1

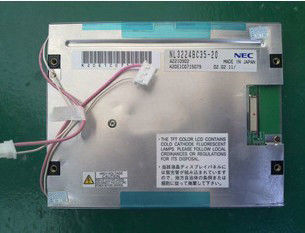

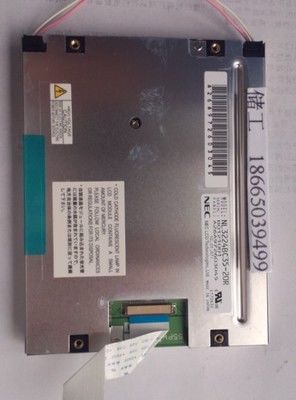

The NL3224BC35-20R is a 5.5 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: Landscape type, Lamp Repaceable, U/D,L/R Reverse . Based on its features, einklcd recommend that this model be applied to Industrial etc. and last shippment on Q3, 2015, Now this model is discontinued.  We inputted this model's specification on Apr 8 2013 for the first time, and the latest update on Jul 31 2014. If you want to embed NL3224BC35-20R LCM in your future product, einklcd strongly recommend that you should contact with NEC or it's agent to learn lateast production and specification detail. The NL3224BC35-20R production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!



                  All our LCD LED screen monitor module panel products will be full test one by one before sending .
