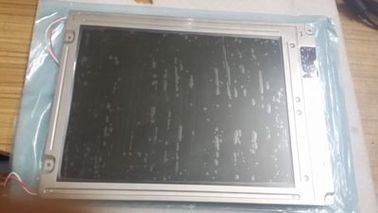

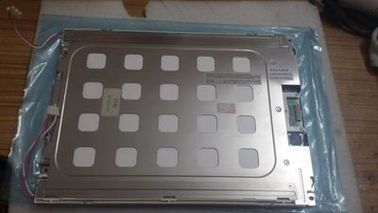

Sharp 10.4 Inch High Brightness Lcd Display 640*480 Pixels 350cd/m2 LQ104V1DG21 31 PIN

Panel Brand

Sharp

Panel Model

LQ104V1DG21

Panel Size

10.4"

Panel Type

a-Si TFT-LCD, LCM

Resolution

640(RGB)×480 , VGA

Pixel Format

RGB Vertical Stripe

Display Area

211.2(W)×158.4(H) mm

Bezel Opening

214.6(W)×162.4(H) mm

Outline Size

265(W)×195(H) ×11.5(D) mm

Surface

Antiglare, Hard coating (3H), Antireflection

Brightness

350 cd/m² (Typ.)

Contrast Ratio

300:1 (Typ.) (TM)

Viewing Angle

70/70/40/70 (Typ.)(CR≥10)

Display Mode

TN, Normally White, Transmissive

Best View on

6 o'clock

Response Time

20/40 (Typ.)(Tr/Td)

Display Colors

262K

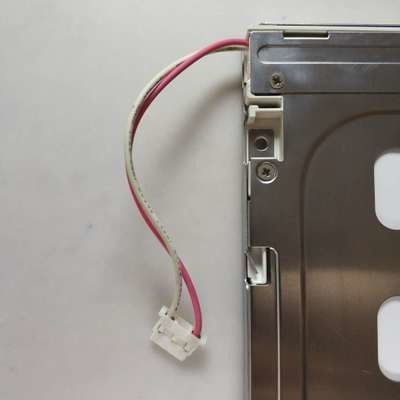

Lamp Type

2 pcs CCFL , 50K hours , Without Driver

Frequency

60Hz

Touch Screen

Without

Panel Weight

700g (Max.)

Application

Signal Interface

Parallel RGB (1 ch, 6-bit) , 31 pins , Connector

Input Voltage

3.3/5.0V (Typ.)(VCC)

Environment

Operating Temp.: -10 ~ 65 °C ; Storage Temp.: -30 ~ 70 °C

Sharp Corporation (hereafter called Sharp) LQ104V1DG21 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 65°C , a storage temperature range of -30 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Antiglare Surface, Landscape type, Lamp Repaceable, Lamp life ≥ 50K hours, U/D,L/R Reverse . Based on its features, Einklcd recommend that this model be applied to Industrial etc. According to the information stored in this model mass production on Q3, 2002 and last shippment on Q1, 2013, Now this model is discontinued. There are 24 items stock and 24 suppliers of this model on Panelook. We inputted this model's specification on Aug 23 2012 for the first time, and the latest update on Jul 8 2015. If you want to embed LQ104V1DG21 LCM in your future product, Einklcd strongly recommend that you should contact with Sharp or it's distributor to learn lateast production and specification detail. The LQ104V1DG21 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
