Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Material: | Glass Oled | Color: | 16.7M Colors |
| Model: | WLED | Style: | Wide Screen High Resolution 480*240 |
| Brightness: | 300cd | Connector: | 30pin |
| Contrast Ratio: | 350:1 | Working Life: | 10K Hours |
| High Light: | industrial panel pc touch screen,industrial computer monitor |
||

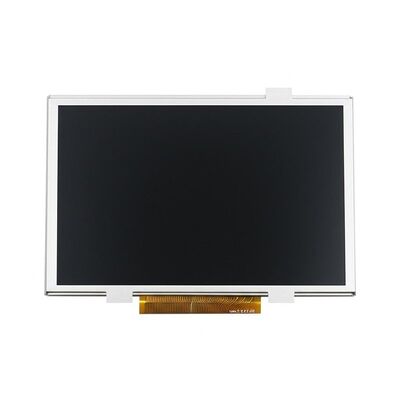

| Brand | PVI | Model | PD024OX2 |
|---|---|---|---|
| Diagonal Size | 2.4 inch | Type | a-Si TFT-LCD , LCM |
| Pixel Format | 480×240 | Configuration | RGB Delta |
| Active Area | 48.48(H)×35.76(V) mm | Outline Dim. | 61.35(H)×47.4(V) ×3.31(D) mm |
| Bezel Area | 51.68(H)×38.96(V) mm | Treatment | Antiglare |
| Luminance | - | Contrast Ratio | 350:1 (Typ.) (TM) |
| View Direction | - | Response Time | 6/15 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/15/35 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M | Light Source | WLED [4S1P] , 10K hours , W/O Driver |
| Weight | 16.0±5.0g | Designed For |
|
| Frame Rate | - | Touch Panel | Without |
| Interface Type | 30 pins Serial RGB (8-bit) + SPI, CCIR601/656 , FPC | ||
| Power Supply | 3.3/5.0/15/-15V (Typ.)(VDD/AVDD/VGH/VGL) | ||
| Environment | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C | ||
It's 300cd/m2 high brightness lcd pannel for digital camera or digital vedio camera use.
Original package of AUO lcd panel.
All our LCD LED screen monitor module panel products will be full test one by one before sending .
