LG 4.0 Inch Industrial LCD Display 320x240 QVGA 450 cd/m² TFT-LCD with 60 Pin IPS Interface

Name: LG 4.0 Inch Industrial LCD Display 320x240 QVGA 450 cd/m² TFT-LCD with 60 Pin IPS Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: Lb040q02-td02
Price: 43.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	Lb040q02-td02
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

320*240

Style:

60PIN IPS

Brightness:

450 CD/M2

Color:

262K

Contrast Ratio:

400 :1

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

LG 4-Inch Industrial LCD Display 320*240 Pixels 60 Pin 450cd/m² LB040Q02-TD02/TD05

Product Overview

High-performance 4.0-inch industrial TFT-LCD display module from LG.Philips LCD, designed for demanding applications requiring reliable performance in various environmental conditions.

Technical Specifications

Brand LG.Philips LCD

Model LB040Q02-TD02

Diagonal Size 4.0 inch

Display Type a-Si TFT-LCD, LCM

Resolution 320*240 QVGA

Pixel Configuration RGB Vertical Stripe

Active Area 81.6*61.2 mm

Outline Dimensions 98.4*78.0 mm

Bezel Area 85.4*65.0 mm

Surface Treatment Antiglare

Luminance 450 cd/m² (Typ.)

Contrast Ratio 400:1 (Typ.)

View Direction 6 o'clock

Response Time 10/30 ms (Tr/Td)

Viewing Angle 65/65/50/65 (CR≥10)

Operating Mode TN, Normally White, Transmissive

Color Support 262K

Backlight CCFL (1 pcs), 20K hours

Weight 90.0/100g (Typ./Max.)

Frame Rate 60Hz

Touch Panel Without

Interface 60-pin CMOS/TTL (1 ch, 6-bit), FPC

Power Supply 3.3/5.0V (VCC/VDD)

Environmental Specifications

Operating Temperature -30°C to 85°C

Storage Temperature -40°C to 85°C

Vibration Level 2.9G (28.4 m/s²)

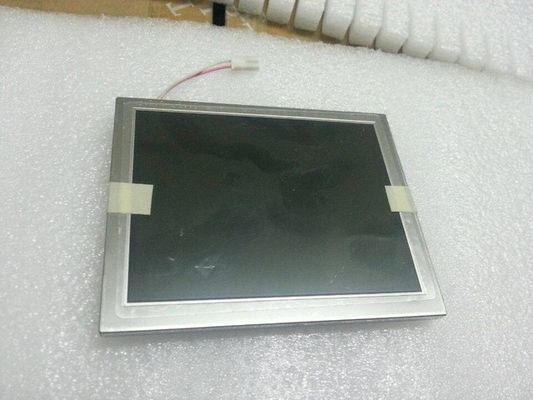

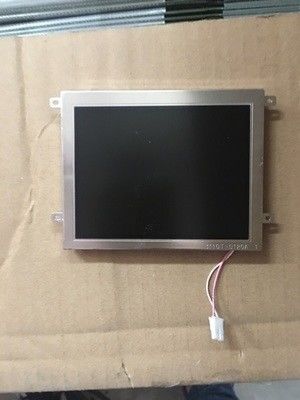

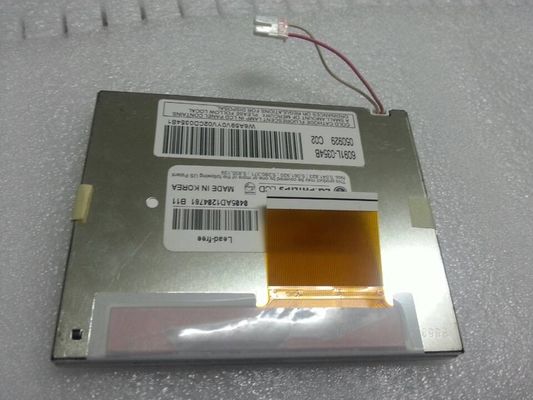

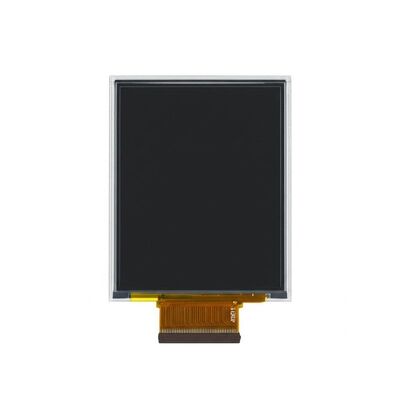

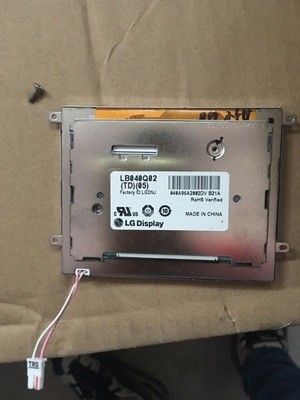

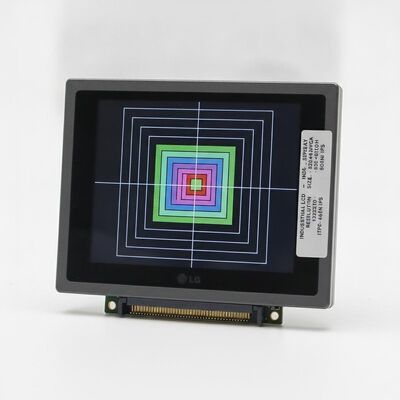

Product Images

Quality Assurance: All original products undergo comprehensive testing before shipment to ensure optimal performance and reliability.

Detailed Documentation: Complete specification details and technical documentation available upon request. Please contact us for additional information.
