| Brand Name: | NEC |
| Model Number: | NL10276AC30-42C |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

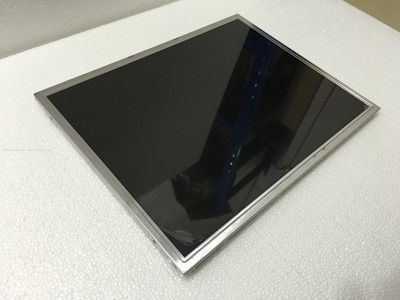

NEC 15inch industrial lcd module NL10276AC30-42C 1024*768pixels 600CD/M2 20Pin
Panel Brand
NEC
Panel Model
NL10276AC30-42C
Panel Size
15.0 inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
1024(RGB)×768 , XGA
Pixel Format
RGB Vertical Stripe
Display Area
304.128(W)×228.096(H) mm
Bezel Opening
307.4(W)×231.3(H) mm
Outline Size
326.5(W)×253.5(H) ×12.1(D) mm
Surface
Clear, Hard coating (2H), Antireflection
Brightness
600 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (TM)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response Time
3/5 (Typ.)(Tr/Td)
Display Colors
262K/16.7M 60% (CIE1931)
Lamp Type
WLED , 70K hours , With LED Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
1.05/1.10Kgs (Typ./Max.)
Application
Signal Interface
LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
|
|
