| Brand Name: | LG |
| Model Number: | LD550EUN-UHA1 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

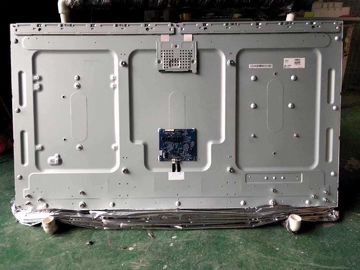

LG 55Inch industrial lcd Original LCD Panel LD550EUN-UHA1 Hight brightness 700CCD/M2 1920*1080 Pixels 51P
| Panel Brand |
|---|
| Panel Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Videowall Seam |
| LG Display |
| 55 inch |
| 1920(RGB)×1080 , FHD |
| 1209.6(W)×680.4(H) mm |
| 1227.4(W)×698.2(H) ×32.2(D) mm |
| 700 cd/m² (Typ.) |
| 89/89/89/89 (Min.)(CR≥10) |
| Symmetry |
| 16.7M/1.07B 72% (CIE1931) |
| 60Hz |
| 17.8 mm (active to active seam) |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| LD550EUN-UHA1 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 1215.6(W)×686.4(H) mm |
| Antiglare (Haze 10%), Hard coating (3H) |
| 1300:1 (Typ.) (TM) |
| IPS, Normally Black, Transmissive |
| 8 (Typ.)(G to G) |
| WLED , 60K hours , With LED Driver |
| Without |
|
|
| Signal Interface | LVDS (2 ch, 8/10-bit) , 51 pins , Connector |
|---|---|
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
All Origianl product will be send to customer after full test one by one.
|
|
