| Brand Name: | CHIMEI innolux |
| Model Number: | S650DJ4-KS5 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

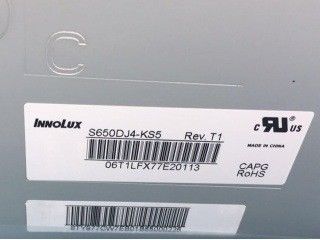

Innolux 65 Inch LED TV module S650DJ4-KS5 Screen Display 3140*2160 51P
Manufacturer
Innolux
Model Name
S650DJ4-KS5 Rev.T4
Screen Size
65 inch
Screen Type
CELL , a-Si TFT-LCD
Pixel Number
3840(RGB)×2160 (UHD)
Arrangement
RGB Vertical Stripe
Active Area(mm)
1428.48 × 803.52 (H×V)
Outline(mm)
1106.84 × 628.01 × 1.32 (H×V×D)
Bezel Area(mm)
-
Treatment
Antiglare (Haze 1%), Hard coating (3H)
Luminance
0 cd/m²
Contrast Ratio
5000 : 1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response
9.5 (Typ.)(G to G) ms
Good View at
Symmetry
Work Mode
Super MVA, Normally Black, Transmissive
Glass Thickness
-
Transmissivity
5.4% (Typ.)(with Polarizer)
Color Depth
1.07B
Backlight
No B/L , 30K hours
Mass
2.06Kgs (Typ.)
Used for
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
V-by-One 8 lane , Connector , 51 pins
Voltage Supply
12.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
|
