4 Strings WLED Glass LCD TV Panel M280DGJ L30 3840 * 2160 Pixels Resolution

Brand Name:	innolux
Model Number:	M280DGJ-L30
MOQ:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

Black Or Silver

Model:

TV Module,WLED

Style:

Wide Screen High Resolution

Supply Ability:

3000pcs per week

Highlight:

led tv display panel

lcd tv display panel

Product Description

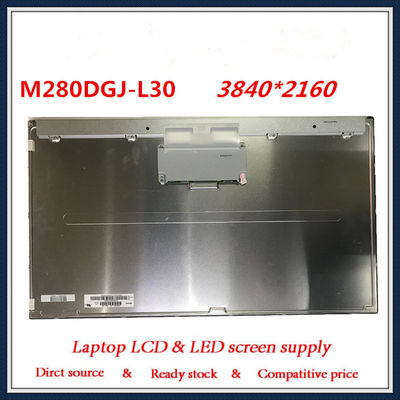

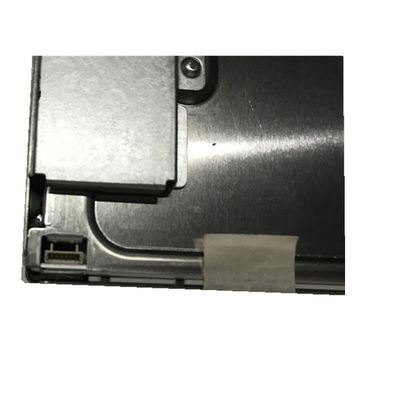

28inch Innolux 4K M280DGJ-L30 LCD Screen Display M280DGJ-L50 LCD Panel Replacement 3840*2160

Panel Brand	Innolux	Panel Model	M280DGJ-L30
Panel Size	28.0 inch	Panel Type	a-Si TFT-LCD , LCM
Resolution	3840(RGB)×2160 , UHD	Pixel Format	RGB Vertical Stripe
Display Area	620.93(W)×341.28(H) mm	Bezel Opening	626.93(W)×347.28(H) mm
Outline Size	648.9(W)×369.3(H) ×20.85(D) mm	Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock	Response Time	1.5/3.5 (Typ.)(Tr/Td)
Display Colors	1.07B 72% (CIE1931)	Lamp Type	4 strings WLED , 30K hours , Without Driver
Frequency	60Hz	Touch Screen	Without
Panel Weight	2.91/3.10Kgs (Typ./Max.)	Application
Signal Interface	V-by-One 8 lane , 51 pins , Connector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

All our LCD LED screen monitor module panel products will be full test one by one before sending .
