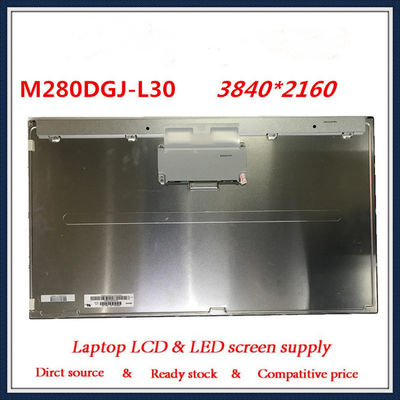

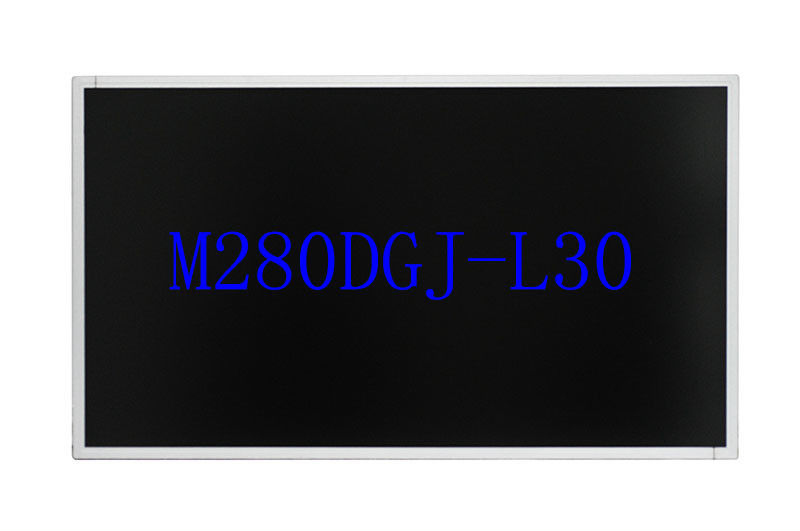

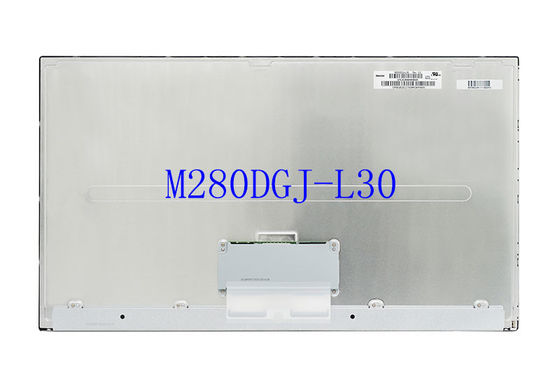

28 Inch 4K UHD Resolution WLED Backlight LCD TV Panel LCD Screen Display

Name: 28 Inch 4K UHD Resolution WLED Backlight LCD TV Panel LCD Screen Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M280DGJ-L30
Price: 30.00 USD
Availability: InStock

Brand Name:	innolux
Model Number:	M280DGJ-L30
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

Black Or Silver

Model:

TV Module,WLED

Style:

Wide Screen High Resolution

Packaging Details:

Industrial packing

Highlight:

led tv display panel

lcd tv display panel

Product Description

4 Strings WLED Glass LCD TV Panel M280DGJ L30

28-inch Innolux 4K M280DGJ-L30 LCD Screen Display with 3840*2160 UHD resolution, designed as a replacement panel for professional applications.

Key Specifications

Panel Brand	Innolux	Panel Model	M280DGJ-L30
Panel Size	28.0 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	3840(RGB)*2160, UHD	Pixel Format	RGB Vertical Stripe
Display Area	620.93(W)*341.28(H) mm	Bezel Opening	626.93(W)*347.28(H) mm
Outline Size	648.9(W)369.3(H)20.85(D) mm	Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
Best View On	6 o'clock	Response Time	1.5/3.5 (Typ.)(Tr/Td)
Display Colors	1.07B 72% (CIE1931)	Lamp Type	4 strings WLED, 30K hours, Without Driver
Frequency	60Hz	Touch Screen	Without
Panel Weight	2.91/3.10Kgs (Typ./Max.)	Application	Professional Display

Interface & Electrical Specifications

Signal Interface: V-by-One 8 lane, 51 pins, Connector
Input Voltage: 12.0V (Typical)

Environmental Specifications

Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
