| Brand Name: | AUO |
| Model Number: | P430HVN01.1 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

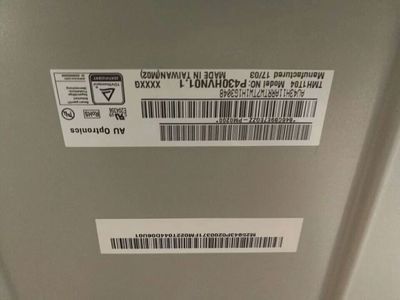

AUO 43Inch Brand New Original LCD Panel P430HVN01.1 1920*1080 Pixels FHD 400CD 52P LVDS custom lcd screen
| Panel Brand |
|---|
| Panel Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Weight |
| AUO |
| 43 inch |
| 1920(RGB)×1080 , FHD |
| 940.896(W)×529.254(H) mm |
| 963.7(W)×552(H) ×27.2(D) mm |
| 400 cd/m² (Typ.) |
| 89/89/89/89 (Typ.)(CR≥10) |
| Symmetry |
| 16.7M 72% (CIE1931) |
| 60Hz |
| 9.00Kgs (Typ.) |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| P430HVN01.1 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 945.9(W)×534.2(H) mm |
| Antiglare, Hard coating (3H) |
| 3000:1 (Typ.) (TM) |
| AMVA3, Normally Black, Transmissive |
| 8 (Typ.)(G to G) |
| WLED , 60K hours , With LED Driver |
| Without |
|
|
| Signal Interface | LVDS (2 ch, 8-bit) , 51 pins , Connector |
|---|---|
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
All Origianl product will be send to customer after full test one by one.
|
