Sharp 12.1 Inch Industrial LCD Display LQ121K1LG58 1280x800 WXGA 700cd/m2 TFT-LCD Panel with 20PIN Interface

Name: Sharp 12.1 Inch Industrial LCD Display LQ121K1LG58 1280x800 WXGA 700cd/m2 TFT-LCD Panel with 20PIN Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ121K1LG58
Price: 43.00 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ121K1LG58
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*800pixels

Style:

20PIN IPS

Brightness:

700CD/M2

Color:

16.7M

Contrast Ratio:

700 :1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Highlight:

WLED Industrial LCD Display

700cd/M2 Industrial LCD Display

WXGA 124PPI LCD Display Panel

Product Description

Sharp 12.1 Inch Industrial LCD Display LQ121K1LG58

1280*800 WXGA Resolution, 124 PPI, 700 cd/m² Brightness, 20-Pin Interface

Product Overview

The Sharp LQ121K1LG58 is a 12.1-inch industrial TFT-LCD display panel featuring an integrated WLED backlight system with LED driver. Designed for demanding industrial applications, this display operates in extreme temperature ranges from -30°C to 80°C and withstands vibration levels up to 1.0G (9.8 m/s²).

Key Features

Wide operating temperature range (-30°C to 80°C)
High brightness 700 cd/m² display
WLED backlight with 50,000-hour lifespan
Integrated LED driver
180° reverse viewing capability
6/8-bit color depth
Matte anti-glare surface treatment
120Hz/240Hz refresh rate options with embedded MEMC

Technical Specifications

Brand	Sharp
Model Number	LQ121K1LG58
Diagonal Size	12.1 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*800 (WXGA), 124 PPI
Pixel Format	RGB Vertical Stripe
Active Area	261.12(W) * 163.2(H) mm
Bezel Opening	264.3(W) * 167.2(H) mm
Outline Dimensions	278(H) * 184(V) * 9.6(D) mm
Surface Treatment	Antiglare, Hard coating (3H)
Luminance	700 cd/m²
Contrast Ratio	800:1 (Typical)
View Direction	6 o'clock
Response Time	30 ms (Typical, Tr+Td)
Viewing Angle	80/80/65/80 (Left/Right/Up/Down, CR≥10)
Operating Mode	TN, Normally White, Transmissive
Color Support	262K/16.2M, 70% NTSC
Light Source	WLED, 50K hours, With LED Driver
Weight	550g (Typical)
Interface Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
Power Supply	3.3V (Typical)
Frame Rate	60Hz, 120Hz/240Hz with MEMC
Touch Panel	Without

Environmental Specifications

Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C
Vibration Resistance	1.0G (9.8 m/s²)

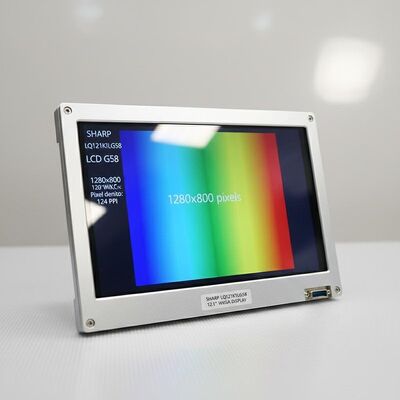

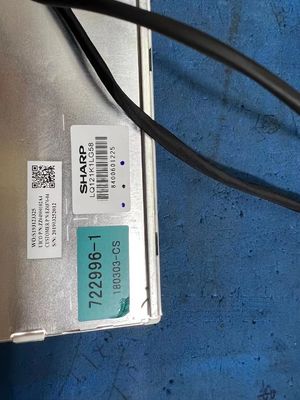

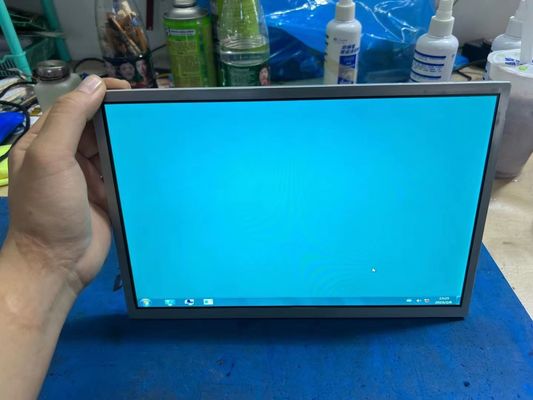

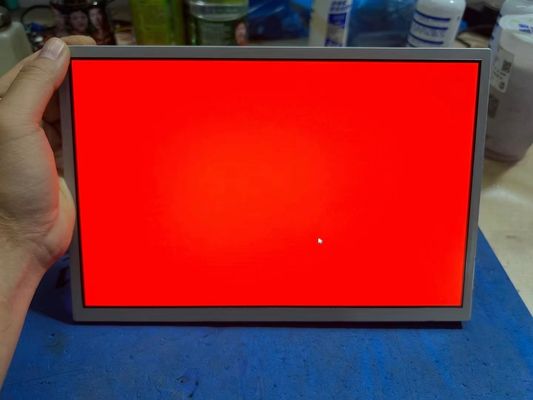

Product Images

This display is designed specifically for industrial applications. Mass production began in Q2 2017 and the model remains in production. For the latest production status and detailed specifications, we recommend contacting Sharp or their authorized distributors directly.
