Innolux 15Inch Industrial LCD Display with 1024*768 Pixels 500cd Brightness and 20Pin Connector Model G150XNE-L01

Name: Innolux 15Inch Industrial LCD Display with 1024*768 Pixels 500cd Brightness and 20Pin Connector Model G150XNE-L01
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G150XNE-L01
Price: 43.00 USD
Availability: InStock

Brand Name:	innolux
Model Number:	G150XNE-L01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1024*768

Brightness:

500cd

Connector:

20pin

Contrast Ratio:

2500:1

Working Life:

70K Hours

Packaging Details:

Industrial packing

Highlight:

industrial computer monitor

industrial touch screen display

Product Description

Innolux 15-Inch Industrial LCD Display G150XNE-L01

High-performance 15.0-inch industrial TFT-LCD display module with XGA resolution (1024*768 pixels) and robust construction for demanding applications.

Technical Specifications

Parameter	Specification
Panel Brand & Model	Innolux G150XNE-L01
Panel Size	15.0 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)*768 (XGA)
Pixel Format	RGB Vertical Stripe
Display Area	304.128mm * 228.096mm
Bezel Opening	307.4mm * 231.3mm
Outline Dimensions	326.5mm * 253.5mm * 9.6mm
Surface Treatment	Antiglare, Hard coating (3H)
Brightness	500 cd/m² (Typical)
Contrast Ratio	2500:1 (Typical)
Viewing Angle	88/88/88/88 (CR≥10)
Display Mode	NPVA, Normally Black, Transmissive
Best View	Symmetry
Response Time	13/5 ms (Tr/Td, Typical)
Display Colors	262K/16.7M, 72% CIE1931
Backlight	WLED, 70K hours lifespan, With LED Driver
Refresh Rate	60Hz
Touch Screen	Without
Panel Weight	0.97kg (Typical) / 1.00kg (Maximum)

Interface & Electrical Specifications

Signal Interface: LVDS (1 channel, 6/8-bit)
Connector: 20-pin
Input Voltage: 3.3V (Typical)

Environmental Specifications

Operating Temperature: -30°C to 80°C
Storage Temperature: -40°C to 85°C

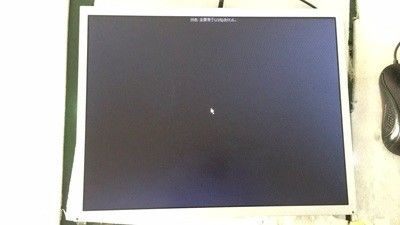

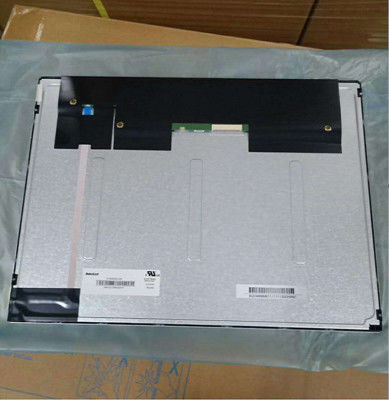

Product Images

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
