10.4 Inch Industrial LCD Display 450cd/m2 Brightness 640x480 Resolution TFT-LCD Panel

Name: 10.4 Inch Industrial LCD Display 450cd/m2 Brightness 640x480 Resolution TFT-LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NL6448BC33-59
Price: 43.00 USD
Availability: InStock

Brand Name:	NEC
Model Number:	NL6448BC33-59
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

640*480pixels

Style:

31PIN IPS

Brightness:

450CD/M2

Color:

262k

Contrast Ratio:

600 :1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Highlight:

10.4 Inch Industrial Lcd Display

COMS Industrial Lcd Display

450cd/M2 Industrial Touch Monitor

Product Description

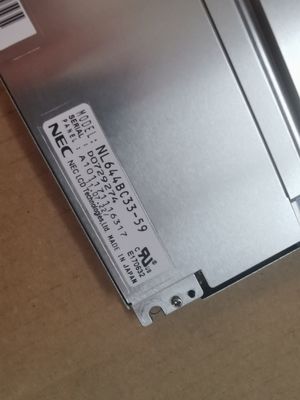

NEC NL6448BC33-59 10.4-inch Industrial LCD Display

This 10.4-inch diagonal industrial TFT-LCD display panel from NEC features 640*480 VGA resolution, 450 cd/m² brightness, and operates with 3.3V CMOS interface. Designed for industrial applications with wide temperature range and vibration resistance.

Key Specifications

Panel Size	10.4 inches
Resolution	640(RGB)*480, VGA, 76 PPI
Display Area	211.2 * 158.4 mm
Brightness	450 cd/m² (Typical)
Contrast Ratio	600:1 (Typical)
Viewing Angle	70/70/45/55 (CR≥10)
Response Time	8/25 ms (Tr/Td)
Display Colors	262K (43% NTSC)
Backlight	2 CCFL lamps (without driver)

Technical Details

Signal Interface	CMOS (1 channel, 6-bit), 31-pin connector
Input Voltage	3.3V / 5.0V (Typical)
Operating Temperature	-10°C to 70°C
Storage Temperature	-20°C to 80°C
Vibration Resistance	2.0G (19.6 m/s²)
Panel Weight	475g (Typical) / 500g (Maximum)

Display Features

TN technology with normally white, transmissive display mode
Optimal viewing at 6 o'clock position
Clear surface with hard coating (3H hardness)
Lamp replaceable design
180° reverse capability
60Hz refresh rate

Important Notice: This model entered mass production in Q2 2003 with final shipments in Q3 2015. The NL6448BC33-59 is now discontinued. For current product integration, we strongly recommend contacting NEC or their authorized agents for the latest production status and specifications.

Recommended Application: Industrial equipment and systems requiring reliable display performance in challenging environmental conditions.
