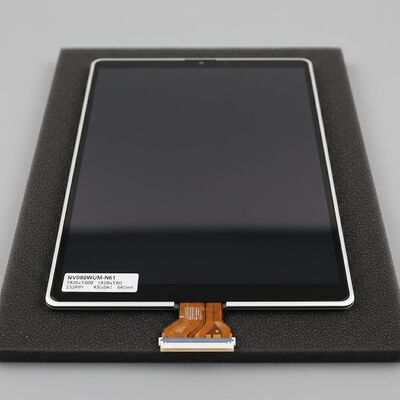

BOE 8inch Laptop display model NV080WUM-N61 Pad lcd screen 1920x1200Pixels 283PPI 45PIN

BOE 8inch Laptop display model NV080WUM-N61 Pad lcd screen 1920x1200Pixels 283PPI 45PIN

Brand:BOE

Model P/N: NV080WUM-N61
Diagonal Size: 8.0"Panel

Typea-Si TFT-LCD, LCM
Resolution:1200(RGB)×1920, WUXGA 283PPI Pixel

Format RGB Vertical Stripe
Active Area107.64(W)×172.224(H) mm

Bezel Opening-
Outline Size:113.14(W)×182.424(H) ×3.68(D) mm

SurfaceHard coating (2H)
Brightness: 435 cd/m² (Typ.)

Contrast Ratio1200:1 (Typ.) (TM)
Viewing Angle85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode: HADS, Normally Black, Transmissive
Best View on Symmetry

Response Time30 (Typ.)(Tr+Td)
Display Colors16.7M 100% sRGB

Lamp Type9S3P WLED , 15K hours , Without Driver
Frequency: 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Screen: Without
Panel Weight95.0g (Max.)

ApplicationPad & Tablet
Signal Interface:MIPI (4 data lanes) , 45 pins Connector
Input Voltage: 3.3V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;

Storage Temp.: -20 ~ 60 °C

NV080WUM-N61 is a 8.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: sRGB, Portrait type, WLED Backlight . Based on its features, Einklcd recommend that this model be applied to Pad & Tablet etc. According to the information stored in einklcd this model mass production on Q3, 2021, Now this model is in production. We inputted this model's specification on Oct 24 2022 for the first time, and the latest update on Sep 1 2023. If you want to embed the LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of NV080WUM-N61. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
