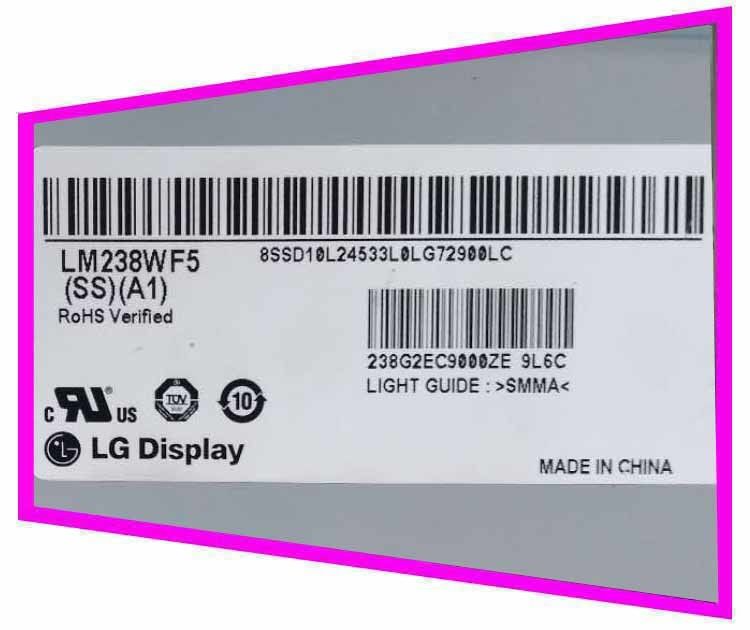

LG 23.8 Inch PC LCD Module LM238WF5 SSA1 FHD 250CD 30P For Dell W15C Desktop PC

Large Image : LG 23.8 Inch PC LCD Module LM238WF5 SSA1 FHD 250CD 30P For Dell W15C Desktop PC

Product Details:

Place of Origin:	China
Brand Name:	LG
Certification:	Rohs,CE,FCC
Model Number:	LM238WF5-SSA1

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Delivery Time:	4-5 working day
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Contact Now

Detailed Product Description

Quality:	Brand New Original	Package:	Original Industrial Packing
Brightnerss:	250CCD/M2	Connector:	30P
Color:	16.7M	Contrast Ratio:	1000:!
Working Life:	30K Hours	Touch Panel:	Without
Resolution:	1920*1080pixels
High Light:	lcd touch screen module , lcd display panel

Panel Brand	LG Display	Panel Model	LM238WF5-SSA1
Panel Size	23.8 inch	Panel Type	a-Si TFT-LCD , LCM
Resolution	1920(RGB)×1080 , FHD	Pixel Format	RGB Vertical Stripe
Display Area	527.04(W)×296.46(H) mm	Bezel Opening	-
Outline Size	535.24(W)×313.18(H) ×12.76(D) mm	Surface	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry	Response Time	14 (Typ.)(G to G)
Display Colors	16.7M 72% (CIE1931)	Lamp Type	WLED , 30K hours , Without Driver
Frequency	60Hz	Touch Screen	In-Cell Touch
Panel Weight	1.92/2.01Kgs (Typ./Max.)	Application
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins , Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

LG 23.8 Inch PC LCD Module LM238WF5 SSA1 FHD 250CD 30P For Dell W15C Desktop PC 0

All Origianl product will be send to customer after full test one by one.

Spec details can be send to you via email,please contact us.
