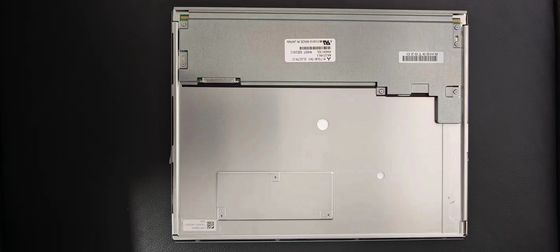

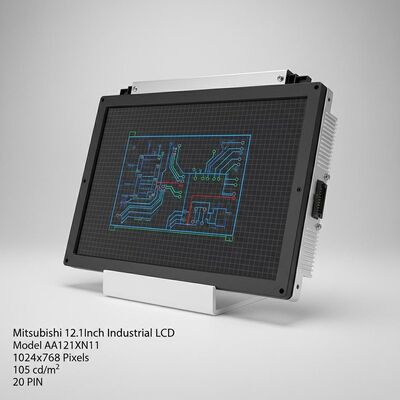

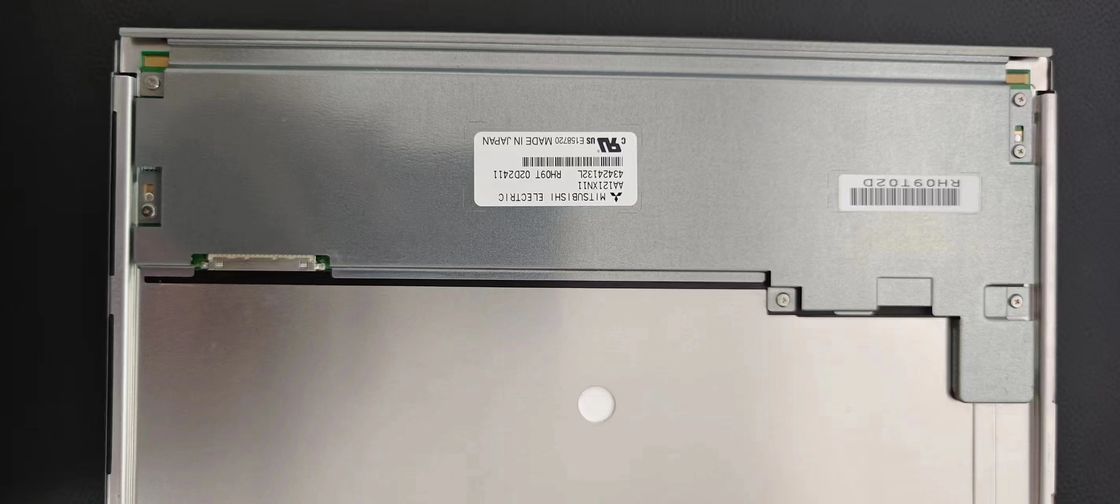

Mitsubishi 12.1Inch Industrial lcd model AA121XN11 1024X768Pixels 105PPI 105cd/M2 20PIN



Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA121XN11 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by einklcd in the following: Wide Temperature, Ultra High Brightness, WLED Backlight, Life ≥ 100K hours, 180° Reverse, 6/8 bit, Matte , NCM. Based on its features,einklcd recommend that this model be applied to Industrial, Outdoor High Brightness etc. According to the information stored in einklcd this model mass production on Q3, 2012 and last shippment on Q2, 2022, Now this model is discontinued.  We inputted this model's specification on Apr 2 2013 for the first time, and the latest update on Apr 9 2022. If you want to embed AA121XN11 LCM in your future product, einklcd strongly recommend that you should contact with Mitsubishi or it's distributor to learn lateast production and specification detail. The AA121XN11 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



Brand: Mitsubishi

Model P/NAA121XN11
Diagonal Size:12.1"

Panel Typea-Si TFT-LCD, LCM
Resolution:1024(RGB)×768, XGA 105PPI

Pixel Format: RGB Vertical Stripe
Active Area:245.76(W)×184.32(H) mm

Bezel Opening:249.0(W)×187.5(H) mm
Outline(mm):260.5 × 203 × 10 (H×V×D)

TreatmentAntiglare, Hard coating (3H)
Luminance:1300 cd/m² (Typ.)

Contrast Ratio800 : 1 (Typ.) (TM)
Viewing Angle80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Response4/12 (Typ.)(Tr/Td) ms
Good View a:t6 o'clockWork

Mode:TN, Normally White, Transmissive
Color Depth:262K/16.7M 40% NTSC

Backlight4 strings WLED , 100K hours , No Driver
Mass:590g (Typ.)

Used for: Industrial Outdoor High Brightness
Refresh Rate: 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouchscreenWithout
Signal Type: LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply:3.3V (Typ.)
Max. RatingsStorage Temp.: -30 ~ 80 °C

Operating Temp.: -30 ~ 80 °C
